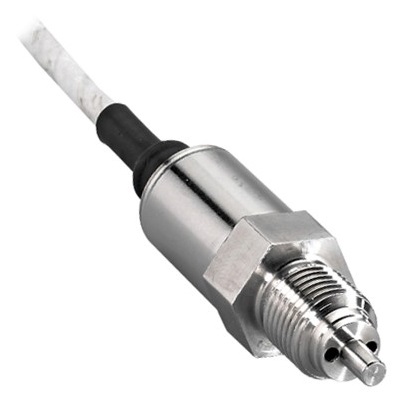

PCM120 Pressure & Temp

Product Description

The PCM120 series pressure sensors allow a combined pressure and temperature measurement at the same location. Wetted parts are all titanium, they are compatible with all common and hostile pressure media used in aerospace, motorsport and automotive.

Miniature size, low mass and ruggedized design make PCM120 series pressure sensors well adapted to embedded applications on motorsport, vehicles, aircraft, missiles, satellites, etc. The pressure transducer utilizes EFE thin film technology offering excellent temperature stability and a platinum RTD senses media temperature. The pressure and temperature measurements are designed to operate independently. Output for pressure is an amplified 0.5-4.5Vdc while the temperature output is directly from a PT1000 sensor and physically measures the media temperature ie it is not an inferred temperature measurement.

Customised motorsport pressure sensor solutions are available such as using PT100 or even NTC instead of a PT1000, Cable assemblies and connector fitting. Equivalent or better than the KA Sensors ASMC Series Pressure & Temperature Transducer.
