PHT120 High Temp Miniature Pressure

Product Description

Operating from –40 up to +175°C, the PHT120 series is dedicated to high temperature pressure measurements. With all stainless steel wetted parts, it is compatible with most media, including corrosive fluids used in automotive, aerospace and energy industries. Equipped with the premium thin film technology developed by EFE, its performances and stability over wide temperature range are excellent. The PHT120 is available with unamplified output (mV/V), compensated in temperature to deliver the best accuracy. Amplified output (Vdc) is also standard, thanks to a high performance and ruggedized built-in electronic module. Equivalent or better than the KA Sensors ASM Series Pressure & Temperature Transducer.

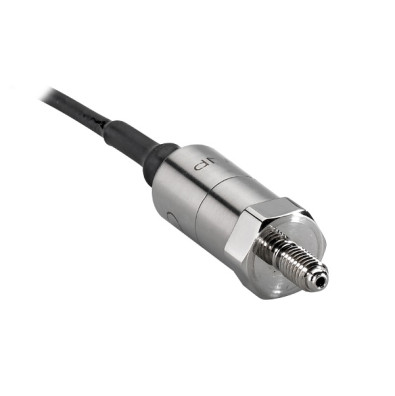

Model PHT121 has a mV output

Model PHT123 is 0.5-4.5V output with 5V regulated supply

Model PHT127 is 0.5-4.5V output with 8-16V supply
