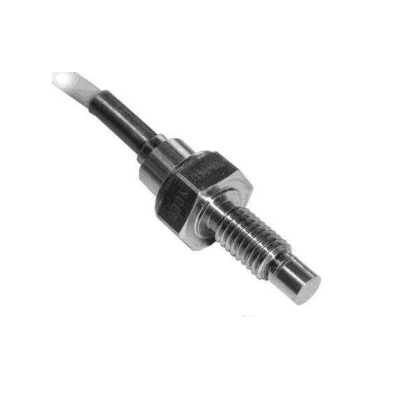

PM4 Miniature Pressure Sensor

PM4 Miniature Pressure Sensor

Miniature, dynamic response pressure sensor

  • Ranges 5 to 200 bar g, sg, abs
  • Output mV/V
  • Linearity up to ±0.35% FS
  • IP67 option, or integral connector

Categories: Sensors Pressure Sensors Miniature & Dynamic Pressure Sensors High Frequency Response

Product Description

These miniature pressure sensors are designed to make static and dynamic measurements of pressure. The All-Titanium construction makes these flush membrane sensors suitable for use in applications where corrosive pressure media may be present. Integrated electronics makes it possible to offer an optional voltage output signal.

Applications

  • Glue dispensing system
  • Hydraulic circuits
  • Explosion test benches
  • Molding and forming profiles
  • Robotics and effectors

Technical Resources

PM4_Datasheet_4202 Rev A.pdf
