Power Module TRION3-1810M-POWER-4

Power module for 4-phase power analysis

4 power channels
Sample rate up to 10 MS/s/channel
Accuracy +/- 0.02% of reading
Safety CAT IV 600V / CAT III 1000V

Categories: Power Analyzer Input Modules Power Modules Data Acquisition DAQ Systems Input Modules Power Analyzers

Product Description

The TRION3-1810M-POWER-4 module is a 4-phase power analysis module. It has 4 power channels each with one voltage and one current input.

Voltage input range is 1 kV RMS (2kV peak). Current input is up to 20A RMS (40A peak) direct or by use of external current clamps. The module has a sample rate of 10 MS/s/channel with 18 bit resolution for all channels simultaneously.

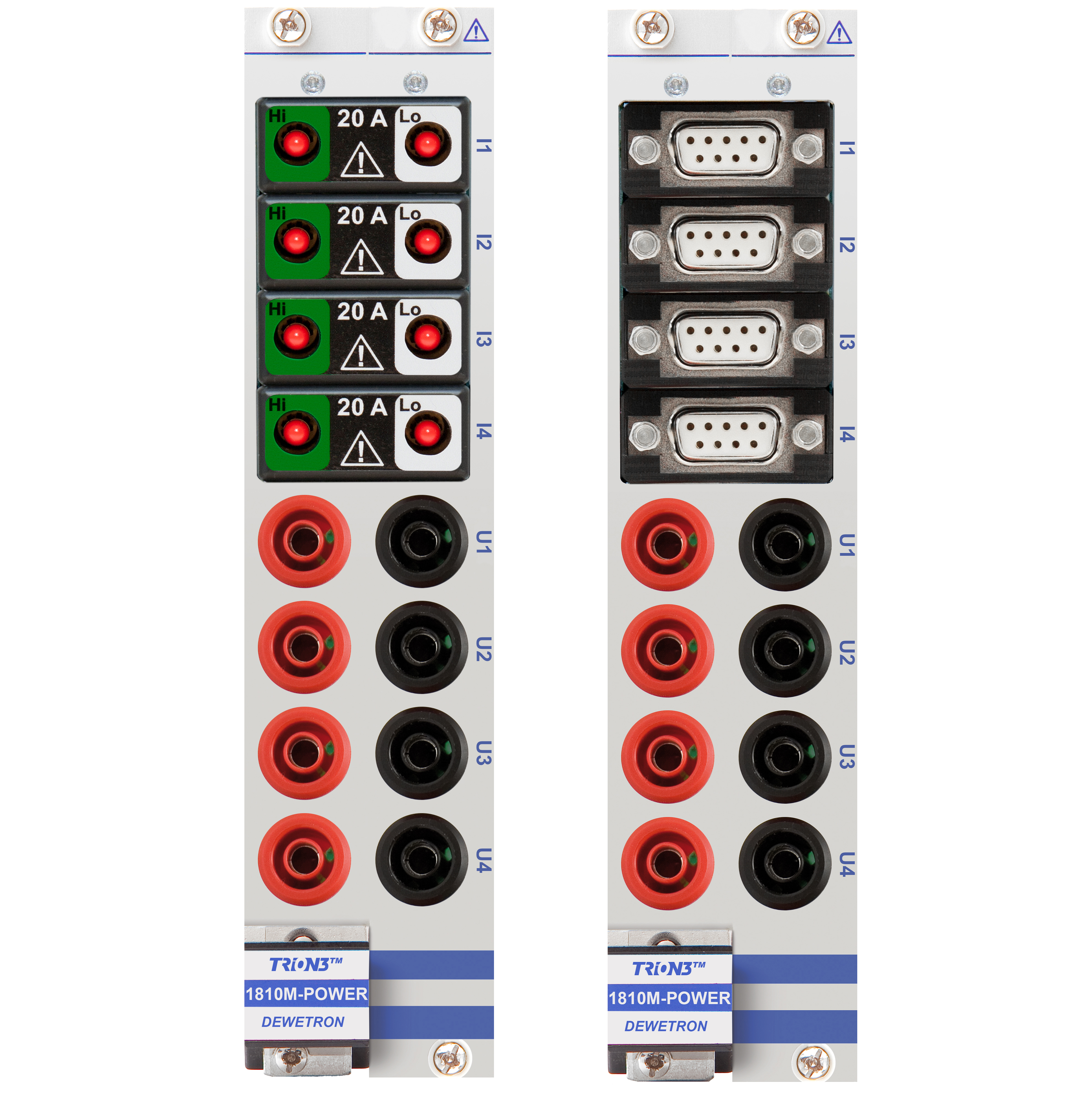

All inputs are isolated with an electrical safety rating of CAT IV 600V / CAT III 1000V. Input connectors are 4mm banana plugs for high voltage and direct current, or DSUB9 for low voltage output from current clamps.

The TRION3-1810M-POWER-4 module is ideal for measuring power and efficiency on a DC bus and 3 phase supply. Sectors include aerospace, automotive, power and rail.
