Draw-wire position sensor 38mm

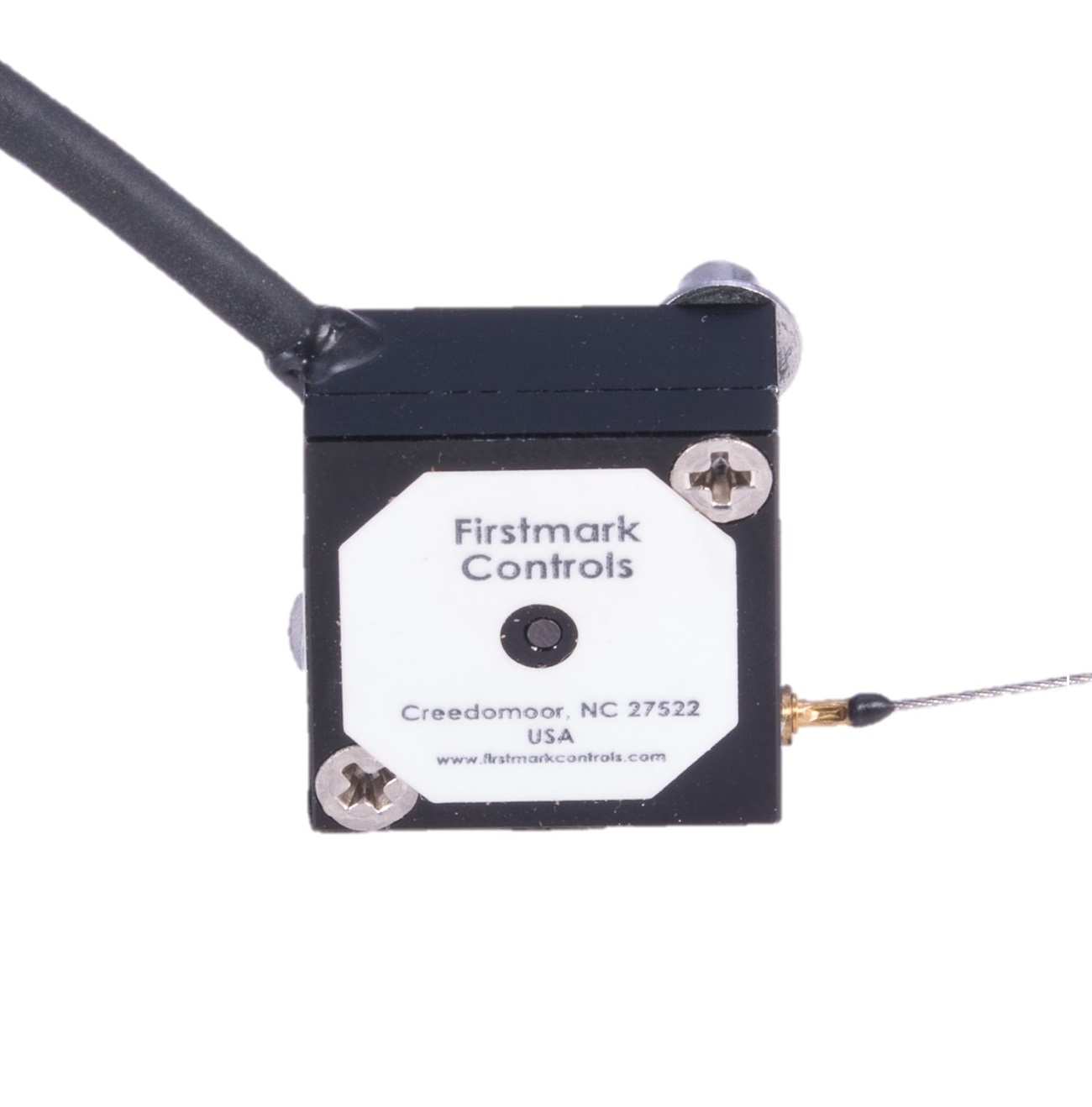

The model 150 string pot is a high grade precision conductive plastic potentiometer, offering stroke/travel up to 38mm (1.5 inches). One of the smallest draw wire sensors available, and specially designed for use within ATD Crash Test dummies, and Automotive/Flight test applications. The sensor has a grooved drum for enhanced repeatability and small robust design. There are several choices of design available for either left or right hand cable pull, cable tension options and base/no base. Output is via a voltage divider circuit offering infinite signal resolution. Design temperature -65 to 125 Deg C and high mechanical life in excess of 5 million cycles. Other products are available for stroke lengths to 1080 mm.
Model 150 now in stock available to purchase on Strainsense Store.
Our experts can help you select the right product for your application.
