PSD232 TEDS & RS232

Product Description

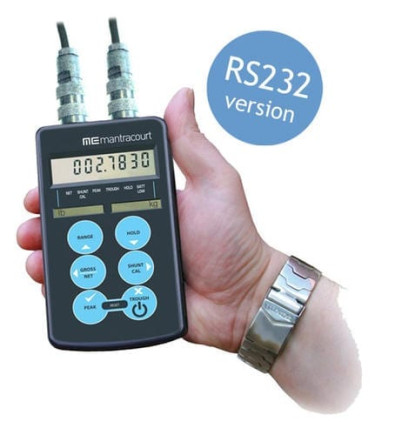

The model PSD232 is a completely portable (strain gauge) powered indicator, packaged in a small, robust IP65 / NEMA 4 enclosure. Two separate ranges are available, which enable the instrument to read and display two units of measure. For simplified use, the operator only has access to six keys.

The menu options offer the ability to tailor the instruments response to the application. Gross, Net, Peak and Trough measurements are easily selected. An announciator indicates which range has been selected. There is also a window, to insert a legend, describing each range. Once these parameters are set, it provides the user with the simplest of indicators.

Features include: Microprocessor based, input range up to 50 mV/v, Sealed to IP65, 7 digit LCD display, TEDS IEEE1451 enabled, auto sleep, 450 hour battery life, dual range facility, RS232, optional carry case.
