Combined P&T Transmitter, programmable

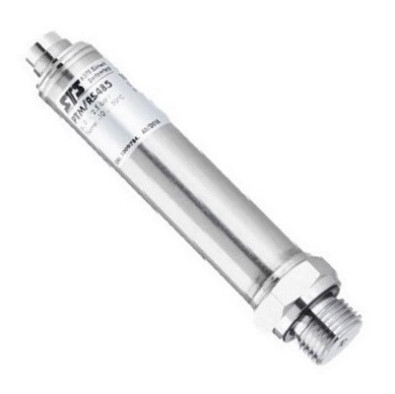

The model PTM/RS485 is a programmable pressure transmitter, RS485 and analogue output to measure combined pressure and temperature. The model is fully configurable from the data sheet with options on pressure ranges 0-100 mbar to 0-600 bar gauge, absolute or sealed gauge pressure reference. Combined RS485 & current 4-20 mA measuring both pressure and temperature. Optional process connection, cable materials PE, PUR, FEP, PVC, seals and compensated temperature ranges. Software is provided to allow the adjustment of zero and span. Lightening protection (surge protection) is offered as an optional extra as is the body material with a titanium option. All units are fully tested in the factory for performance and accuracy prior to leaving the factory. Contact us if delivery is of main concern.
Our experts can help you select the right product for your application.
