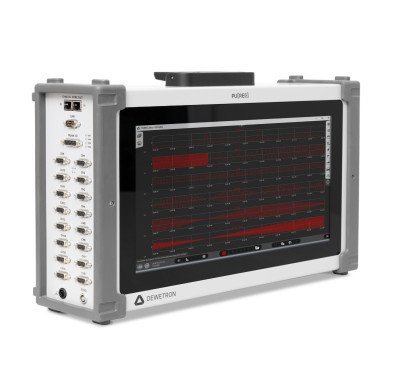

Mobile data recorder
The PU(Rec) data recorder has 16 input channels and is a portable and rugged easy to use device for field testing, trouble shooting and maintenance in many application areas. The large multi-touch 15.6" screen aids set up, with easy viewing of data on screen.
The system is designed to record and store data from many different types of analogue sensors including force, position, pressure, vibration. Sensor excitation is provided for each channel. It also has 8x TTL level digital inputs for digital / counter / encoder inputs. There is an onboard CAN interface option. Interfaces include USB, LAN and HDMI for additional connectivity. Data storage is removable 1TB SSD.
Input types can be expanded further with the use of MSI adapters for bridge, charge, current, high voltage, IEPE, LVDT.
The system also includes Oxygen software which is powerful, intuitive to enable real time data review, trigger actions, math and calculations, waveform and statistics. The system can be locally or remote operated and has easy to use data export and report creation capabilities.
Our experts can help you select the right product for your application.
