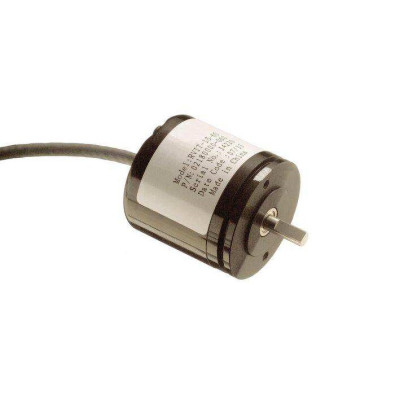

RVIT 15-60 & 15-120i

RVIT 15-60/15-120i

Rotary variable inductance transducer

  • Ranges ±60° or 0-120°
  • ±3 V DC ratiometric or 4-20 mA output
  • ±0.25% linearity
  • Rugged anodised aluminium housing

Product Description

The RVIT-15-60 and RVIT-15-120I are DC operated non-contact rotary transducers. The RVIT proprietary design incorporates a set of printed circuit coils and a conductive spoiler to achieve superior performance and low cost. During operation, the conductive spoiler rotates with the transducer shaft, altering the magnetic field generated by the printed circuit coils.

Product Features

Technical Resources
Click the resource buttons below to download the file.

Download Resources

Product Applications

  • Ball valve position
  • Throttle level feedback
  • Rotary actuator feedback
  • Dancer arm position
  • Reeler / Dereeler
