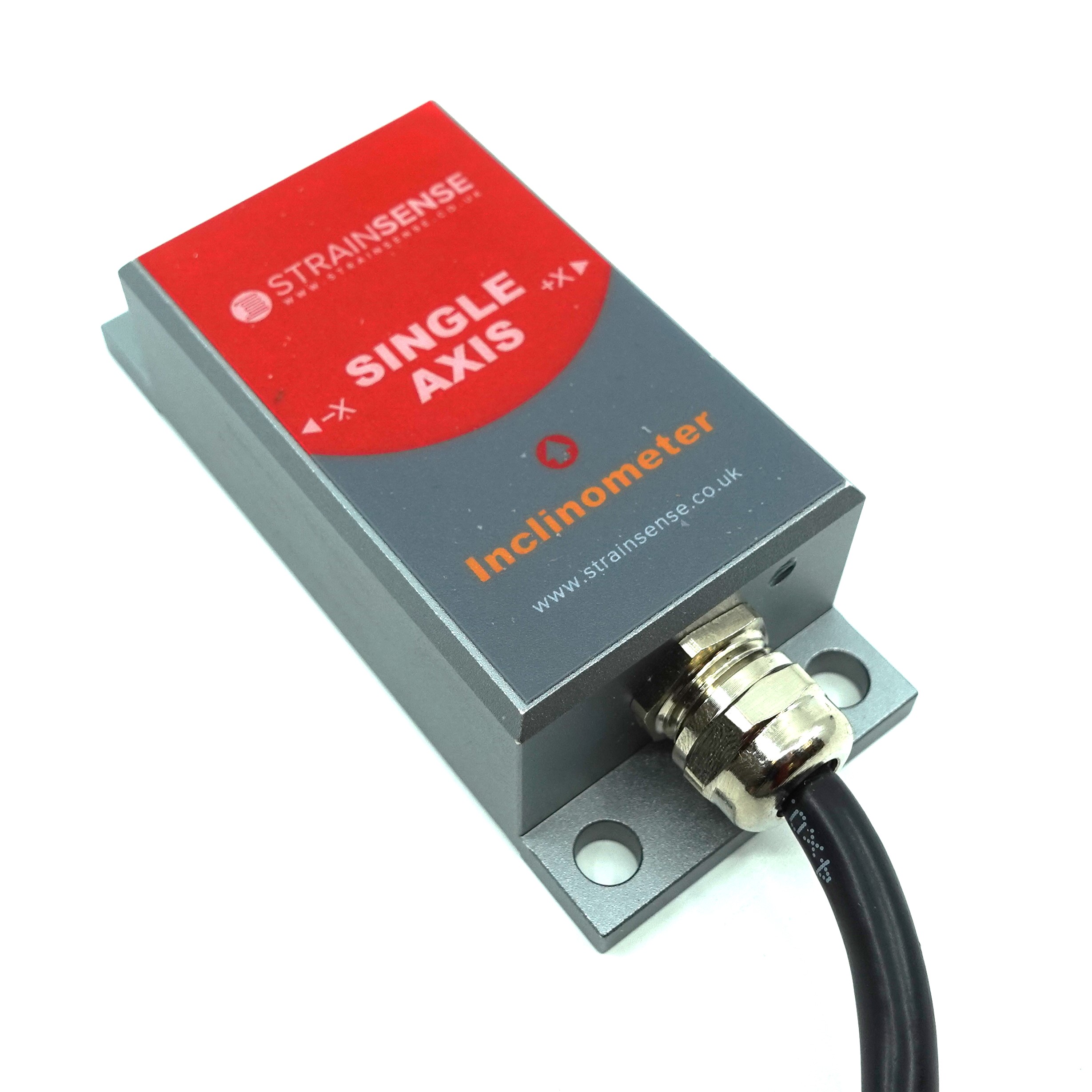

Standard accuracy single axis inclinometer digital output
The SCA116 is a serial output single-axis inclinometer for industrial control. Built-in high-precision A/D differential converter, through our 5 way filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. Output interface options RS485, RS232, RS422, TTL & PWM. Built in ADI high precision digital temperature sensor can correct the sensor temperature drift to ensure high repeatability in low-temperature and high-temperature environments. Output frequency response up to 18Hz, for higher response frequencies we can customize according to requirements. The products are truly industrial-grade products, reliable performance, scalable, and with a variety of output options. Suitable for a variety of harsh industrial control environments.
Our experts can help you select the right product for your application.
