Product Description

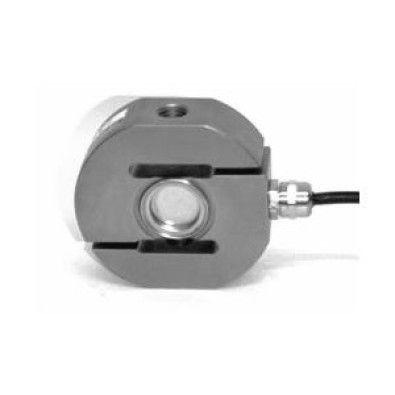

The SCS S Cell is a shear design for high accuracy measurement of medium to high range tension and compression applications. Readily available and low cost make this an excellent choice for a wide range of test and measurement applications. With female threads on either end they can be directly attached to actuators for tension and compression applications or supplied with rod ends for tensile application. Standard ranges are from 0-250kg to 0-20000kg. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. All products come with calibration certificate. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
