Product Description

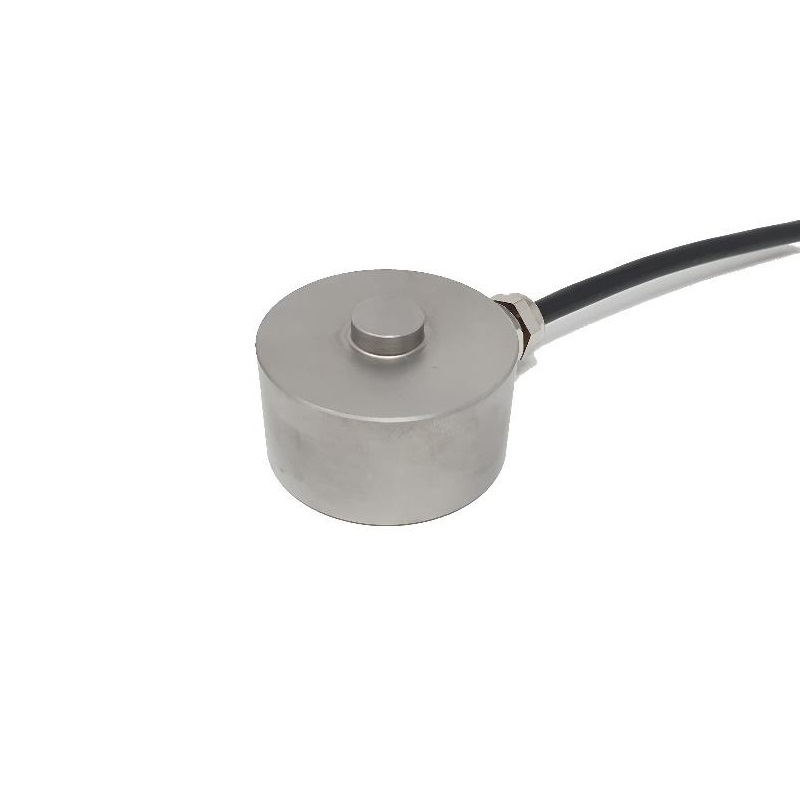

The SCS compression cell is a compact design load cell using an accurate diaphragm design. Its is a robust construction with full welded covers for IP68 sealing. With wide measurement range from 0.5 to 50t, this load cell is ideal for many applications with an integral load button it is simple and versatile to use out of the box. Standard ranges are from 0-500kg to 0-50000kg. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
