SGA strain gauge

Product Description

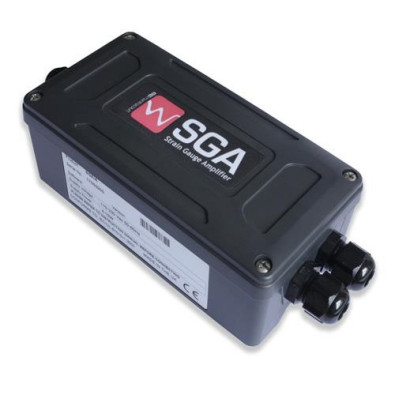

The model SGA strain gauge amplifier is a high performance signal conditioner for single or multiple strain gauge bridge sensors such as load, force, pressure and torque. The SGA A&D provides strain gauge signal conditioning for load cells and offers a wide bandwidth and a wide input signal range. The device can be powered from AC or DC supplies providing excitation for up to four x 350 Ohm strain gauge bridges. The conditioned output signal can be selected from 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, ±5 V or ±10 V. Options include: Isolated DC supply, DIN rail mount and OEM module (SGA/D). Supplied in a waterproof IP67 NEMA4 bulkhead mountable case and is available with AC or DC power supply options. The strain gauge signal conditioning module is robust and fully CE compliant.
