Expandable signal conditioning Chassis

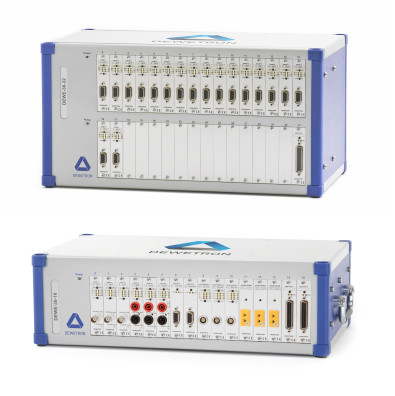

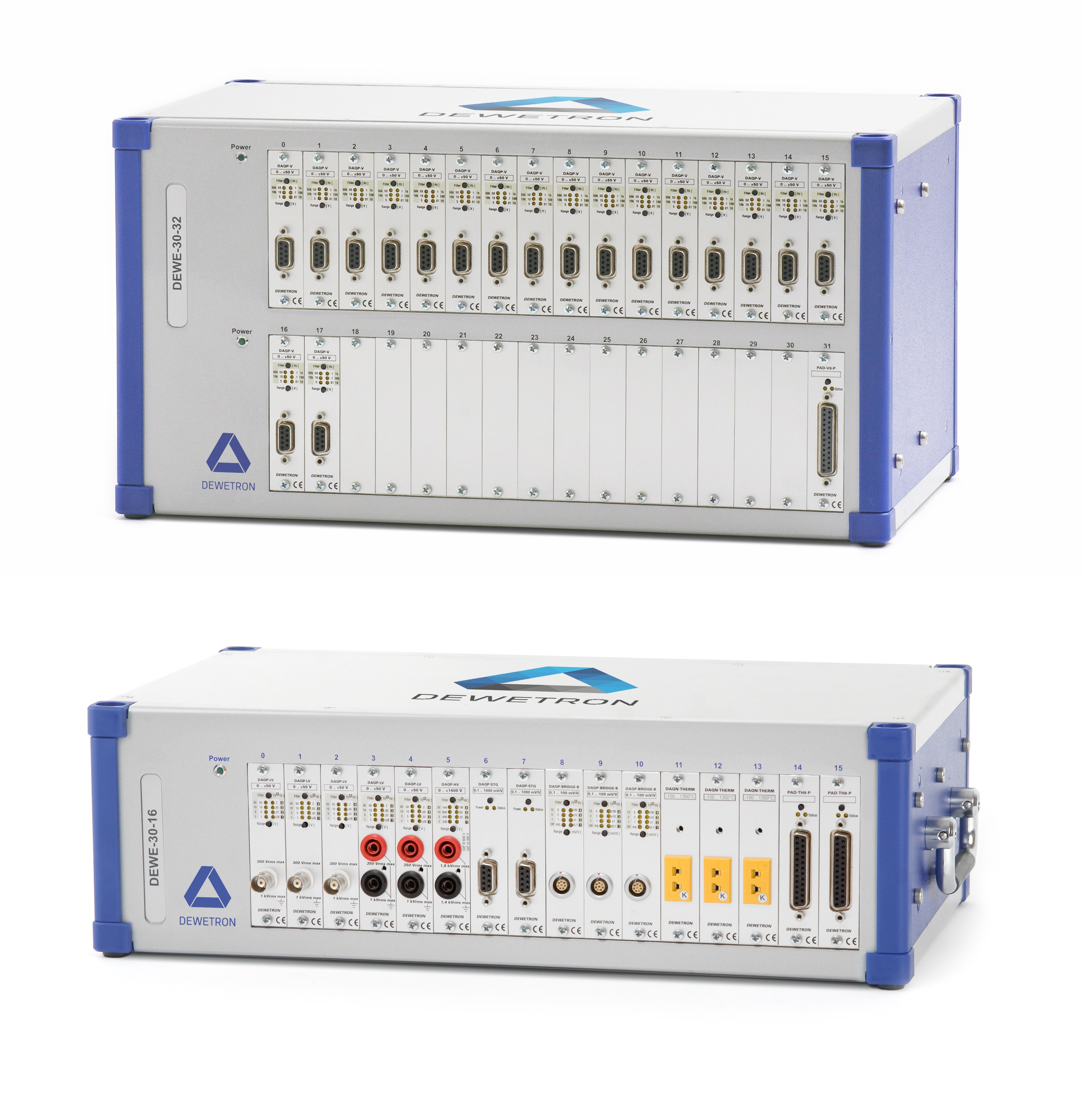

DEWE-30 series signal conditioning chassis are available for DEWETRON DAQP signal conditioning modules and offer a conditioned signal output of ±5 V or ±10 V on BNC sockets or on a multi-pin connector when dynamic isolated DAQP signal conditioning modules are installed. The chassis also have an EPAD interface for connection of XR low speed temperature / voltage / current modules.
The multi-pin connector can be configured to match any A/D cards interface so that a 1:1 connection of the analog signals by a high quality cable is possible. Ideal for use with TRION-1802-dLV or TRION-1600-dLV AD cards where a matching cable is also available for plug and play use.
Standard power supply is 240V AC. There is an option for 11 to 32V DC use.
A 19" rack mouting kit and carrying handles are optionally available.
Our experts can help you select the right product for your application.
