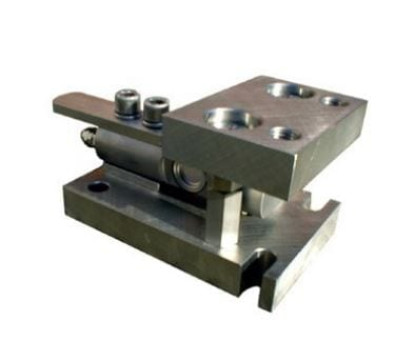

Single beam, silo mount load cell
Product Description
The single beam, silo mount load cell vessel weighing assembly comes in ranges 0-250KG to 0-2000KG (2 tonnes). The silo mount boasts an all stainless assembly with stainless load cell fully sealed to ingress protection IP68. The vessel weighing system has a high resistance to off axis loads. Accuracy 0.05% full scale, output 2 mV/V with a standard excitation of 10 VDC. IP68 rated with a cable gland and 4 metres of cable. Atex certification available upon request.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
