Platform weighing, single point
Product Description

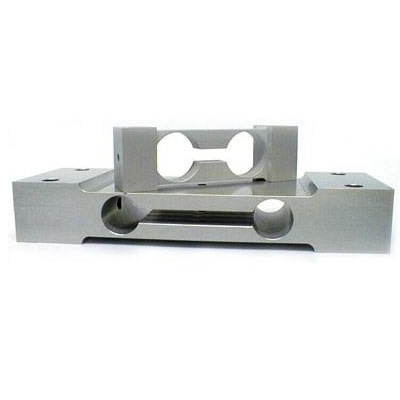

The Single point load cells are manufactured as a robust construction and sealed to ingress protection IP65 with an option for IP67. Ranges are from 0-0.5 KG to 0-1000 KG, with an output 2 mV/V on a 10 VDC excitation. The unit is highly accurate to better than 0.03% full scale. Cable length is 0.5 metres as standard. The sensor can easily be customized to include special ranges, compensated temperature ranges, longer cable lengths, contact us for your requirements.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
