Shackle pin, atex and/or marine approved

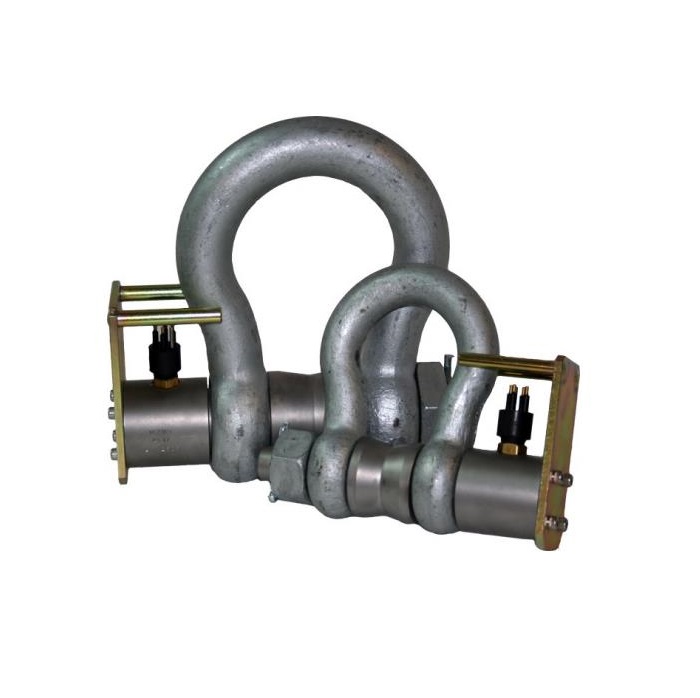

Shackle load cells are used in various applications in both marine and industrial for measuring load in mooring lines or winches. They are made up from a standard shackle with a load pin in place of the original pin. The pins orientation is locked at the end to align the load with the sensing orientation of the pin, this also provides mechanical protection to the cable exit. Standard ranges are from 0-3.25t to 0-250t. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. Wireless version also available, please refer to our website for the TLS Telemetry Load Shackle. Non-standard sizes, ranges, cable lengths and shunt available on request. Submersible and subsea designs also available. Contact us for custom designs.
Our experts can help you select the right product for your application.
