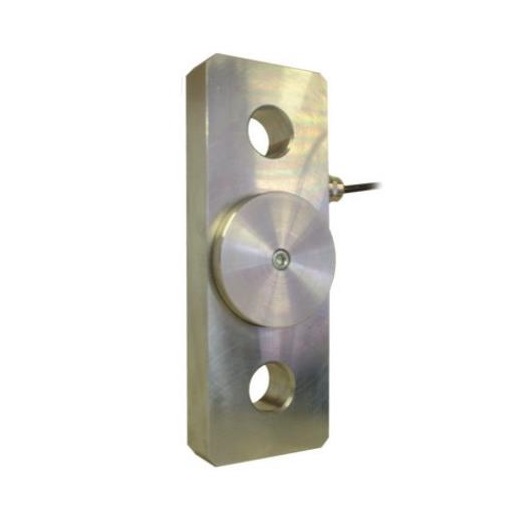

SLL Stainless load link

Product Description

The SLL stainless steel load link is a robust link designed for versatile tensile load monitoring. With an o’ring sealed and PG7 cable gland sealing with dielectric gel backfill, this unit is IP68 sealed. We recommend always using load links with bow or D shackle for best performance. Aluminium and wireless versions also available, see our website for ALL Aluminium Load Link and TLL Telemetry Load Link. Standard ranges are from 0-1.5t to 0-150t. Electrical output is 1mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. All products come with calibration certificate. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
