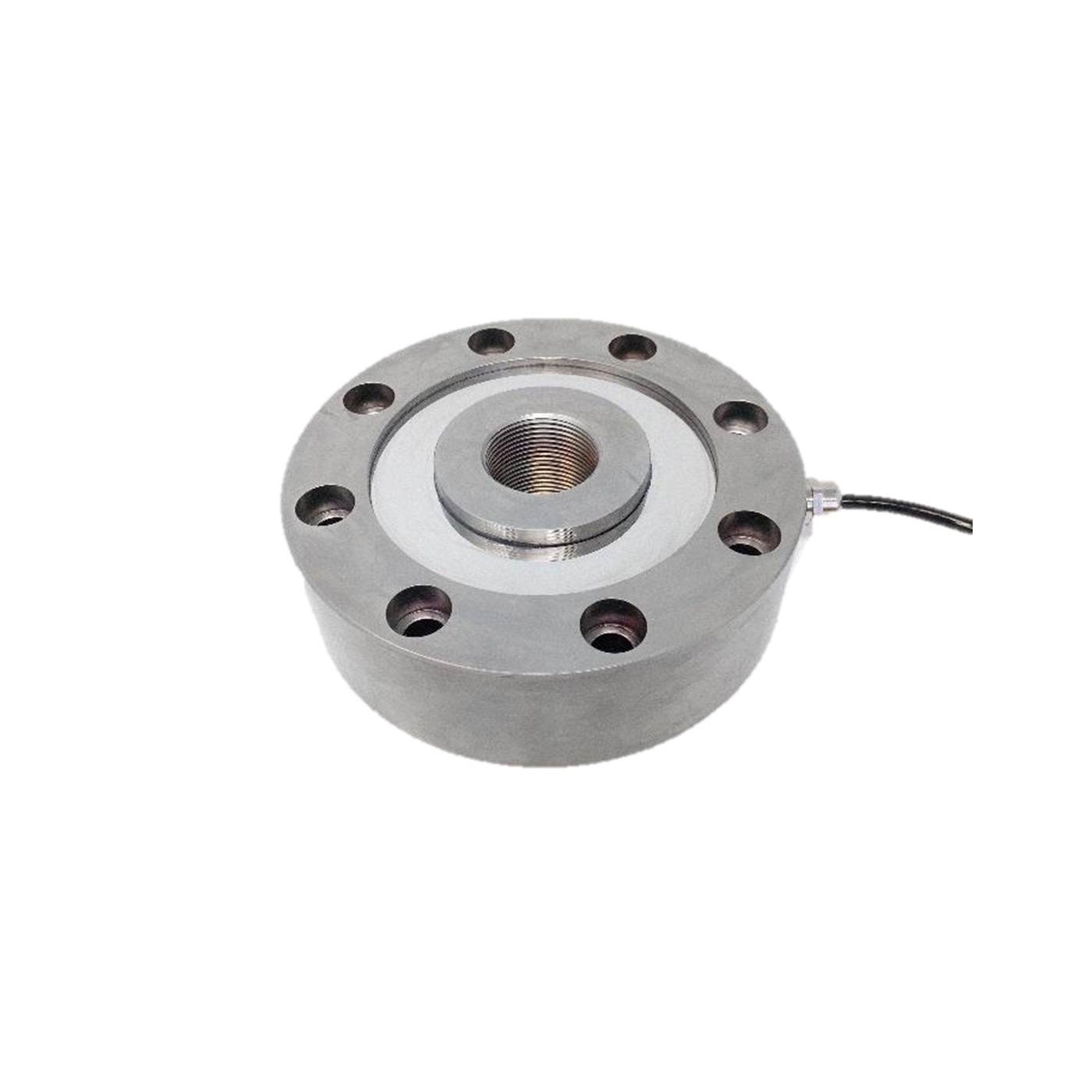

SLP Stainless low profile

Product Description

The SLP series of low profile load cells, also known as pancake load cells is high robust and fatigue rated design. Classically known for its wide use in test rig applications, these multi shear web design load cells have excellent extraneous load rejection often caused by small misalignments in test rigs. We specialise in being able to supply load cells with threads matched directly to actuators or providing exact replacements to obsoleted parts from other manufacturers. Standard ranges are from 0-5kN to 0-1000kN. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. All products come with calibration certificate. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
