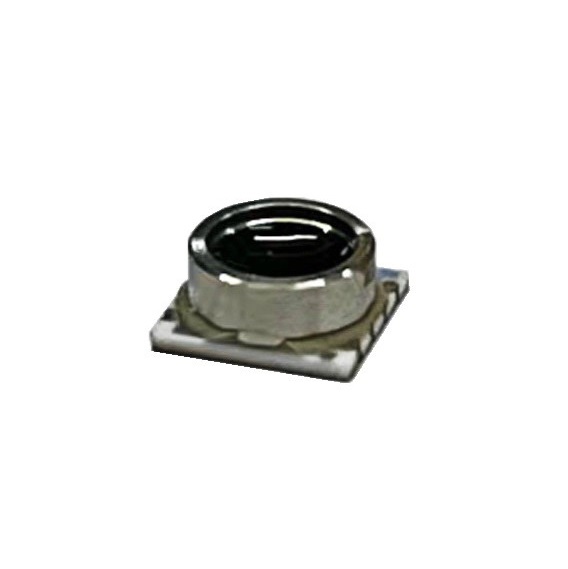

Board Mount Pressure Sensor Module

Product Description

SA5803 High Accuracy Silicon Ceramic sensor is a piezoresistive silicon pressure sensor, offering an 24bits digital output for reading pressure over the specified full scale pressure span and temperature range. SA5803 Series is fully calibrated, and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 50 Hz. SA5803 Series is calibrated over the temperature range of -10°C to 60°C. The sensor is characterized for operation from a single power supply from 1.8 to 3.6 Vdc. These sensors measure differential and gage pressures. Differential versions allow application of pressure to either side of the sensing diaphragm. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. SA5803 Series sensors are intended for use with non-corrosive, non-ionic working fluids.

Alternative to MS5803 devices such as the MS5803-01BA, MS5803-14BA, MS5803-30BA.
