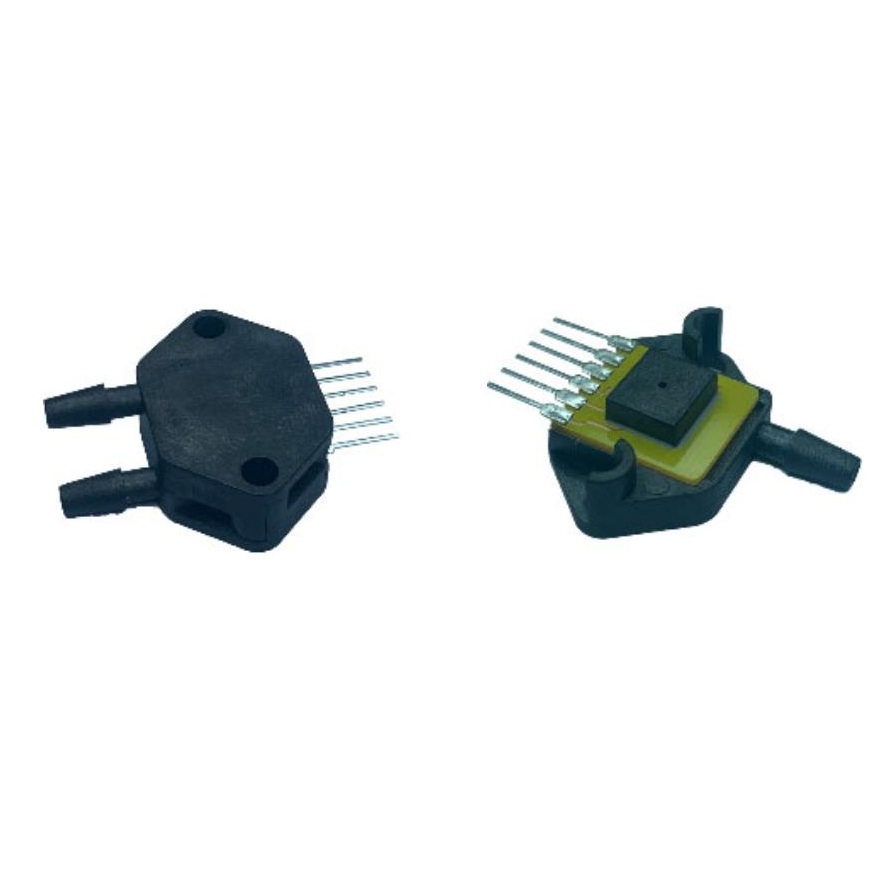

Board Mount Pressure Sensor SMT/SIP

Product Description

SA5000 & SA5700 can be used as drop in replacements to MPX5010, MPXV5010, MPVZ5010, MPX5500DP & MPX5500DP

SA5000 High Accuracy Silicon Ceramic sensor is a piezoresistive silicon pressure sensor, offering an analog output for reading pressure over the specified full scale pressure span and temperature range. SA5000 Series is fully calibrated, and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz. SA5000 Series is calibrated over the temperature range of 0 °C to 60 °C. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, differential and gage pressures. Differential versions allow application of pressure to either side of the sensing diaphragm. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. SA5000 Series sensors are intended for use with non-corrosive, non-ionic working fluids.

SA5700 High Accuracy Silicon Ceramic sensor is a piezoresistive silicon pressure sensor, offering an analog output for reading pressure over the specified full scale pressure span and temperature range. SA5700 Series is fully calibrated, and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz. SA5700 Series is calibrated over the temperature range of 0 °C to 60 °C. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc. These sensors measure absolute, differential and gage pressures. Differential versions allow application of pressure to either side of the sensing diaphragm. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. SA5700 Series sensors are intended for use with non-corrosive, non-ionic working fluids.
