T24-ACM-PA pulse

Product Description

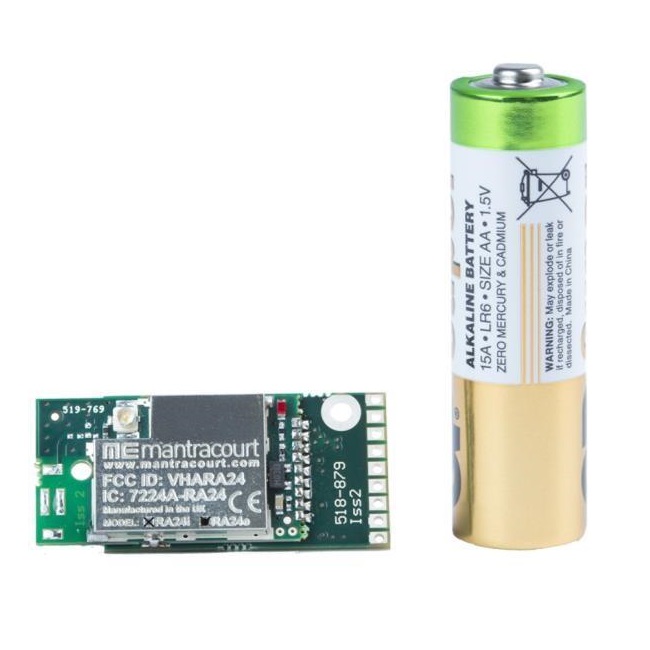

The T24-PA transmitter module collects and processes pulse related measurements, such as speed of rotation, proximity, flow and count, forming part of the T24 modular telemetry system. The data transmitted by the T24-PA can be received by multiple T24 receivers that include displays, handheld readers, analogue outputs, relay modules and computer interfaces. T24 transmitters have been designed for battery operation and support an ultra low-power sleep mode whilst offering class leading wireless coverage and range. Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications. A choice of enclosures enabling battery connection, field connectivity and environmental sealing up to IP67 ensure these modules provide a flexible solution to your wireless sensor requirements. The T24-PA provides 5 V excitation. Inputs accept volt free contacts, open collector and 5 V logic.
