T435 Miniature Servo Inclinometer 4-20mA

Product Description

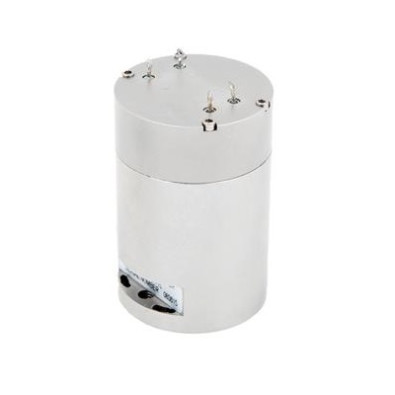

The Sherborne Sensors T435 ‘L’ series is a family of single axis, high-precision, closed loop, gravity referenced servo inclinometers, ideal for use within a variety of application environments, and where space is at a premium. Available in ranges from ±3° to ±90°, with a form factor measuring only 61mm (2.41 inches) high and a diameter of less than 37mm (1.46 inches), the Series T435 ‘L’ offers a high-level 4-20mA signal, proportional to the sine of the angle of tilt. Units are fully self-contained, and able to be connected to a DC power source and readout or control device, to form a complete operating system. Units are extremely rugged, and can withstand a 1500g shock event. Solder pin terminations are standard. The 4-20mA output of the T435 ‘L’ series is specifically designed for electrically noisy environments, or where inclinometer output signals must be transmitted over a long distance. T435 ‘L’ series inclinometers operate on a single 24Vdc supply and the output series load resistance can be as high as 400Ω.
