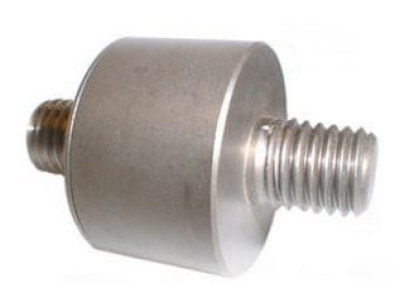

Tension & Compression cell
Product Description
The TCE Tension cells compact design lends itself to inline measuring and retro-fitting applications. Measurement in both tension and compression makes this a particularly versatile load cell. Integral male threads or rod end bearings for mechanical mounting. High natural frequency for fast response dynamic applications. Standard ranges are from 0-100N to 0-20KN. Electrical output is 2mV/V with options for amplified outputs of 4-20mA, 0-5VDC, 0-10VDC or +/-10VDC. All products come with calibration certificate. Non-standard sizes, ranges, cable lengths and shunt available on request. Contact us for custom designs.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
