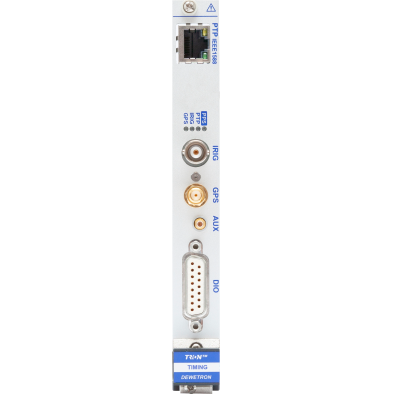

Timing and Synchronization Module TRION-TIMING-V3

Timing and synchronization module

PTP, GPS, PPS, IRIG timing inputs
GPS position, 10 Hz update rate
8 x Digital IO, 1 x counter / encoder
Auxiliary camera trigger output

Categories: Digital Modules Digital Modules Data Acquisition DAQ Systems Input Modules Power Analyzers Additional Input Modules

Product Description

The TRION-TIMING-V3 module supports PTP / IEEE 1588, GPS, IRIG and PPS (pulse per second) time synchronisation modes. The GPS interface also provides position data from 1 Hz to 10 Hz. IRIG codes A and B are supported.

The module supports 1 advanced counter / encoder input and 8 configurable digital IO, all TTL level. The counter inputs and digital IO are on a DSUB15 connector. Inputs are sampled at from 100S/s to 2MS/s per channel.

Regulated 5V and 12V DC power supplies are available on the module to power sensors.

The module has an auxiliary output. This is used as a camera trigger by default and can be used for any trigger input / output.

The TRION-TIMING-V3 module is ideal for precision time synchronisation in test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
