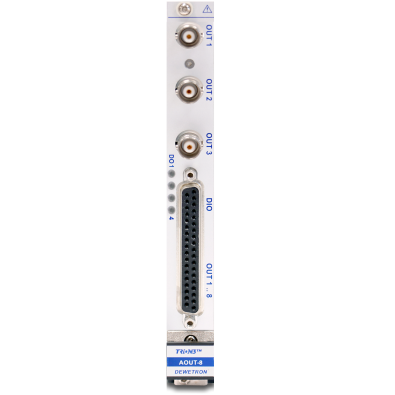

ANALOGUE OUTPUT MODULE TRION3-AOUT-8

Analogue output module

8 isolated output channels
Voltage or current output
FPGA based function generator
Data replay or constant output

Categories: Data Acquisition DAQ Systems Input Modules Analogue Modules Power Analyzers Additional Input Modules Analogue Modules

Product Description

The TRION3-AOUT-8 supports programmable voltage or current analogue outputs. There are 3 output channels on separate BNC connectors, and all 8 channels on a single D-SUB-37 connector. The module is for use with DEWE3 chassis.

Module functions include a constant output, function generator and data stream output. Function waveforms include sine, square, triangle and customised.

High speed mode is 2.5 MS/s per channel with 16 bit resolution and high resolution mode is 500kS/s per channel with 32 bit resolution. Voltage output accuracy is +/-0.02% of reading.

The TRION3-AOUT-8 module is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
