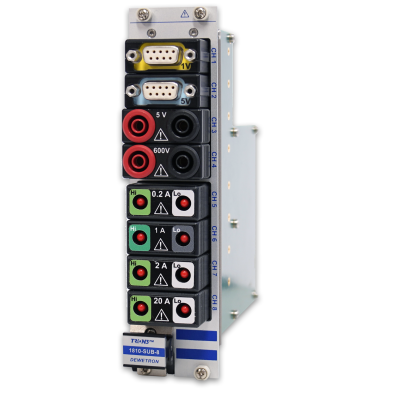

BASE MODULE FOR SUB MODULES TRION3-1810-SUB-8

TRION base module for sub modules

Up to 8 channels
Modular voltage and current inputs
Up to 600V rms (+/-1500V peak)
Up to 10 MS/s per channel sampling

Categories: Data Acquisition DAQ Systems Input Modules Analogue Modules Power Modules Power Analyzers Additional Input Modules Analogue Modules Power Analyzer Input Modules

Product Description

8 channel TRION base module for use with the TRION-SUB and TRION-POWER-SUB modules listed below, for use with DEWE3 data acquisition chassis. The TRION3-1810x-SUB-8 module provides 8 slots for TRION sub modules, thus allowing a very modular configuration of various voltage and current inputs. All inputs are user exchangeable on individual channels.

For measuring voltage and current inputs, sampling at up to 10 MS/s per channel, with up to 20 bit resolution.

Current sub modules: TRION-POWER-SUB-CUR-02A-1, TRION-POWER-SUB-CUR-1A-1, TRION-POWER-SUB-CUR-2A-1, TRION-POWER-SUB-CUR-20A-1, TRION-POWER-SUB-CT.

Voltage sub modules: TRION-SUB-600V, TRION-SUB-XV, TRION-POWER-SUB-dLV-1V, TRION-POWER-SUB-dLV-5V.

Applications include automotive, rail, aerospace and power system development.
