TRION POWER SUB-MODULES

TRION sub-modules for use with TRION-POWER and TRION-HV modules

Voltage and current inputs
Up to 600V RMS (+/-1500V peak)
Up to 20A RMS (+/-40A peak)
Isolated, high bandwidth

Categories: Data Acquisition DAQ Systems Input Modules Analogue Modules Power Modules Power Analyzers Additional Input Modules Analogue Modules Power Analyzer Input Modules

Product Description

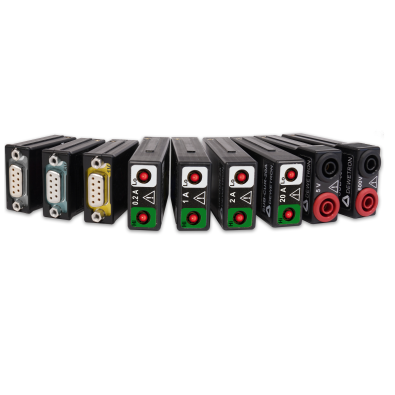

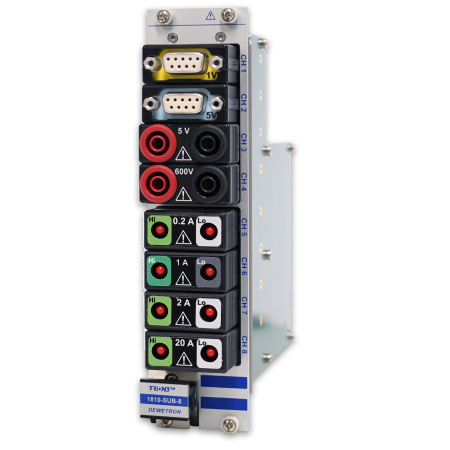

In combination with the TRION(3)-18xx-POWER-4, TRION(3)-1810-HV-8 and TRION3-1810x-SUB-8 modules, the interchangeable TRION sub-modules can be used to create individual input configurations for measuring voltage and current. Because of the unique modularity, up to 8 channels can be equipped with different sub-modules for direct current or voltage measurement. Thus, almost any kind of voltage or current sensor can be connected to our power analyser systems. The sub-modules are user-exchangeable at any time, automatically detected and the calibration data is directly stored inside the sub-module.

Current sub modules: TRION-POWER-SUB-CUR-02A-1, TRION-POWER-SUB-CUR-1A-1, TRION-POWER-SUB-CUR-2A-1, TRION-POWER-SUB-CUR-20A-1, TRION-SUB-CT.

Voltage sub modules: TRION-SUB-600V, TRION-SUB-XV, TRION-POWER-SUB-dLV-1V, TRION-POWER-SUB-dLV-5V, TRION-POWER-SUB-dLV-1.

Applications include automotive, rail, aerospace and power system development.
