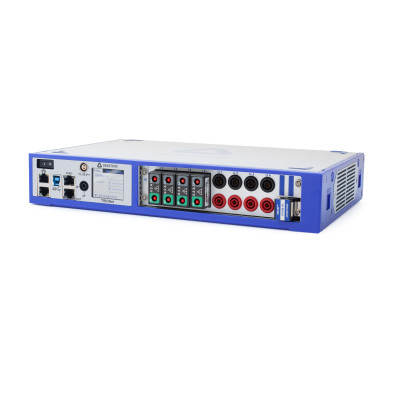

TRIONet3 Modular DAQ System

Product Description

The TRIONet3 is a universal measurement solution for local or distributed measurements. The TRIONet3 has capacity for two TRION / TRION3 modules for data acquisition of up to 16 high speed channels.

Modules can be exchanged in seconds to customise the unit for additional measurement applications. Almost every type of signal is supported by TRION / TRION3 modules including voltage, high voltage, current, IEPE, strain gauge bridge, potentiometer, counter, CAN, GPS. You only need a TRION3 power module and you have a mixed-signal power analyser.

Multiple TRIONet3 units can be connected in a synchronised network with all data stored on a single PC. It has LAN and USB3 interfaces for simple connection to a PC for data storage.

TRIONet3 can also be used as an expansion to an existing DEWE data acquisition system.

Solutions with TRIONet3 include real-time testing on trains and other electrical vehicles, wave energy and windmill testing, impact test laboratories, UPS testing.

The system is supplied with the intuitive Oxygen acquisition software for system configuration and analysis of recorded data.

Options for TRIONet3 include an external current sensor power supply, external battery pack and 19” rack mount kit.
