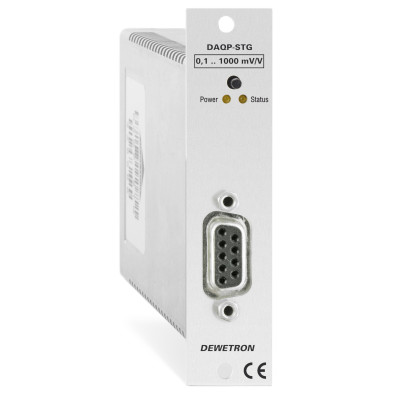

Universal Input Module DAQP-STG

Product Description

Isolated universal signal conditioning input module. Accepts all standard inputs including bridge (full / half / quarter), voltage, RTD, resistance, potentiometers. The module has a high bandwidth of 300 kHz.  MSI adapters can be used for IEPE, thermocouple, charge and high voltage (up to 200V).

Configurable low pass filter with selectable type and frequency, regulated sensor excitation. DSUB9 connector. Accuracy typically 0.05%. Output voltage of +/-5V.

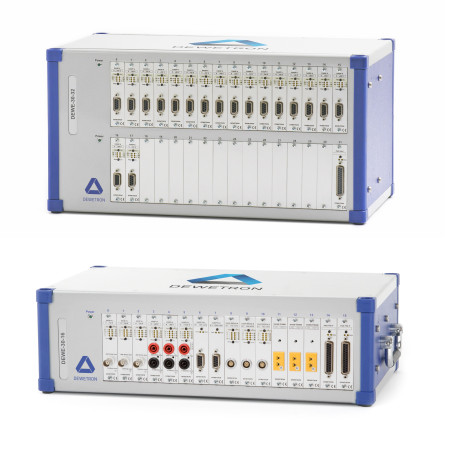

For installation in DEWE-30 16 or 32 channel signal conditioning chassis.

Applications include in test cells data acquisition systems and real time control systems.
