Universal analogue input module
Product Description
The TRION-2402-dSTG module supports bridge, IEPE, voltage and resistance inputs on every channel. Current inputs are also supported with an external shunt. Input type and measurement range is freely configurable for each channel.

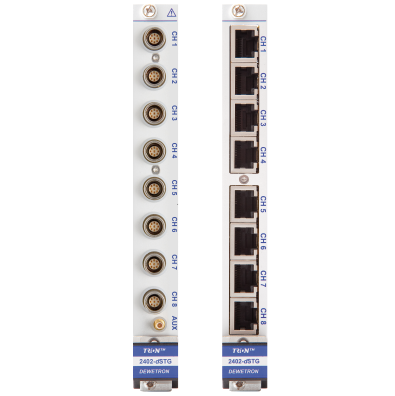

The module is available with 8 channels on Lemo 0B connectors and RJ45 connectors.
The sample rate is from 100S/s to 200 kS/s per channel. Resolution is 24 bit. Input configuration is differential or single ended. Each channel has a low pass anti-aliasing filter. Voltage input accuracy is ±0.02% of reading ±0.02% of range.
Freely configurable excitation voltage and current is available on all channels.
The TRION-2402-MULTI module series is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
