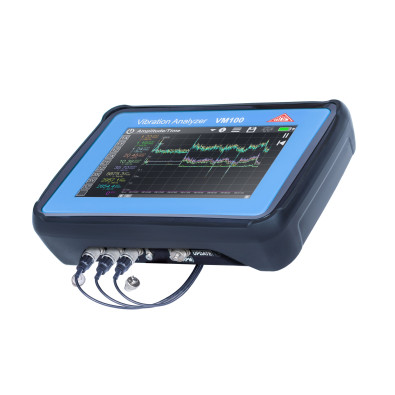

VM100 Vibration Analyzer

VM100A and VM100B Hand-held vibration analyzer

1 to 3 channels
Accuracy ±1 (> 5 % of full scale; mid-band)
Battery operating time 10-14 hours
3 to 9 IEPE inputs

Categories: Sensors Accelerometers Human Vibration / Meters and Analyzers

Product Description

This new device from MMF gives the user a handheld easy to read screen with triaxial IEPE inputs for convenient on-site analysis of vibration conditions.

With built in analysis tools (*upgrade modules also available depending on analysis requirements) including full FFT with waterfall mode, acceleration, velocity, displacement with peak and RMS output calculations.

Signal recording available saved as a .WAV file, CSV measurement data and BMP for screen-shots with removeable SD card and USB connectivity.

A high-capacity built-in NIMH battery allows up to 14 hours operational time in-between recharging.

IP65 protection and handy carry-case makes for a poweful versatile on-site tool for designers, engineers, maintenance and surveyors.

Applications

Condition monitoring of rotating machinery, like motors, pumps, compressors, turbines or gearboxes
Route-based measurements at machines
Roller bearing diagnosis
Balancing
Measurement of hand-transmitted and whole-body vibration; Ride comfort evaluation
Run up/coast down analysis; resonance finding
Vibrations on passenger and merchant ships
Vibration measurement at very sensitive equipment (VC/Nano)
