Voltage / current input module

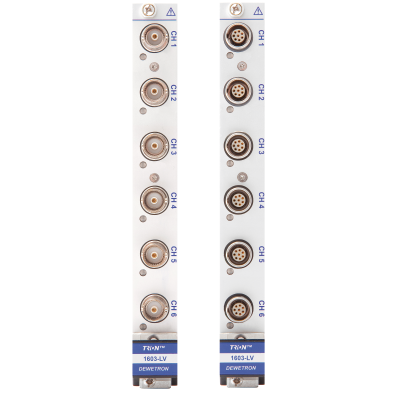

The TRION-1603-LV module supports voltage and current inputs on every channel. The module has 6 channels on BNC connectors and Lemo 1B connectors.
Sample rate is from 100S/s to 250 kS/s per channel with 16 bit resolution. All channels have channel to channel and channel to chassis isolation. Each channel has a freely configurable low pass anti-aliasing filter. Voltage input accuracy is ±0.02% of reading ±0.02% of range.
Freely configurable voltage excitation is available on all channels, with the Lemo 1B module variant.
The TRION-1603-LV module is ideal for use is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
Our experts can help you select the right product for your application.
