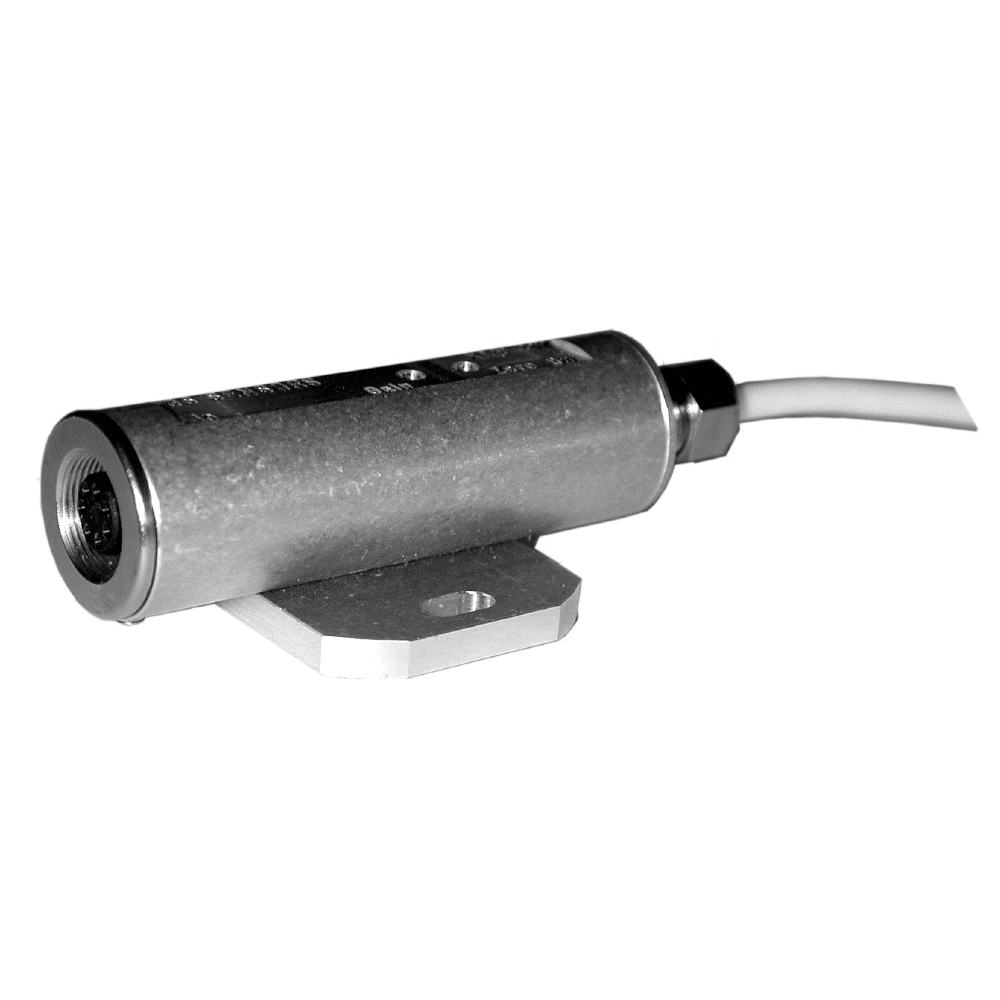

XAM-IC current amplifier

Product Description

The XAM-IC In-line amplifier provides the user with a compact module translating the output from any Wheatstone bridge transducer into a 4 to 20 mA output on 2 wires. The zero for a 4 mA output can be adjusted by a potentiometer, externally accessible. The gain is usually factory set, but a gain set potentiometer allows individual fine tuning. The XAM-IC requires 10 Vdc to 36 Vdc power supply and is protected against reverse polarity. For easy installation, the standard version is supplied with a miniature connector on the sensor’s side, but it can also be delivered with cable glands and 1 m cable on each side, or with a second connector. With its rugged and compact metallic housing the XAM-IC is suited for on-board applications.
