Product Description

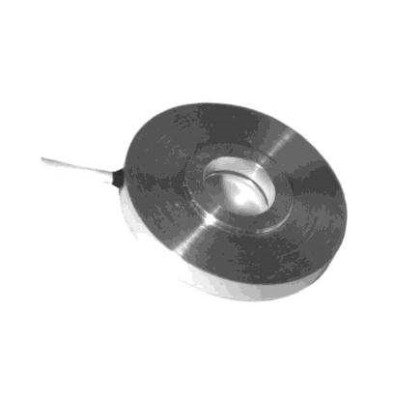

The model XFL225D is a very flat miniature load cell with a temperature compensation module integrated into the output cable. This design allows extremely small sensors without sacrificing thermal zero and sensitivity performance. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The XFL225D can withstand considerable overloads and measure strain during compression in static and dynamic applications. A strain relief spring strengthens the cable output. This sensor is available in a load washer model (the diameter of the hole is 8.2 mm) to measure bolt tightening forces.
