Product Description

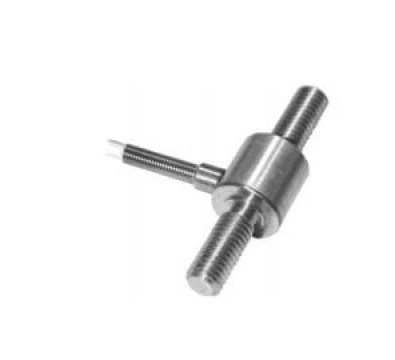

The model XFTC301 series has been specifically developed to measure tension and compression in static and dynamic applications. The miniature size facilitates testing where space is at premium.

The XFTC301 design incorporates a highly stiff design combined with high output strain gages which gives two major advantages, a very high fatigue rated sensor for large cycle use and smallest size possible.

The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes the load cells' performance at low ranges and frequencies. A strain relief spring strengthens the cable output. With two threaded male studs, the XFTC301 is easily installed in industrial or OEM applications.
