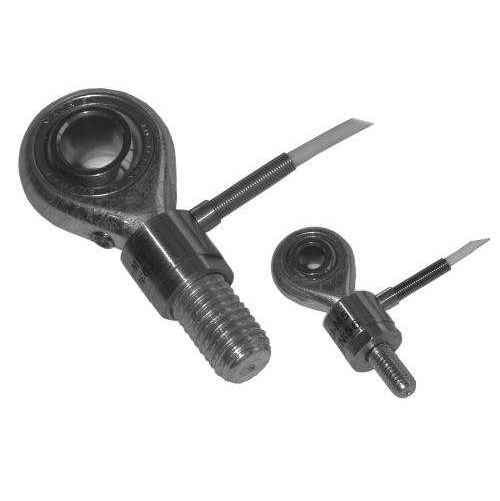

XFU400 rod end bearings

Product Description

Available in a range of measurements and a variety of mounting threads, the model XFU400 is easily installed. Its miniature size facilitates testing where space is at a premium. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The XFU400 is used in applications that require a spherical plain rod-end bearing and has the capacity of accepting a full scale range of up to 5 kN [1 klbf].

XFU400 Miniature Load Cell

The product in question is the XFU400 Miniature Load Cell, a high-quality sensor designed and manufactured by TE Connectivity. This device is designed for both tension and compression applications, with a range from 0-500 N to 0-5 kN or 100 lbf to 1 klbf. It is characterised by its low deflection and fast response time, making it an ideal choice for various applications.

Key Features

• The XFU400 is based on standard rod end bearings, making it easy to integrate into various systems.
• It offers a fast response time, ensuring accurate and timely readings.
• The sensing element is fitted with a fully temperature-compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gauges.
