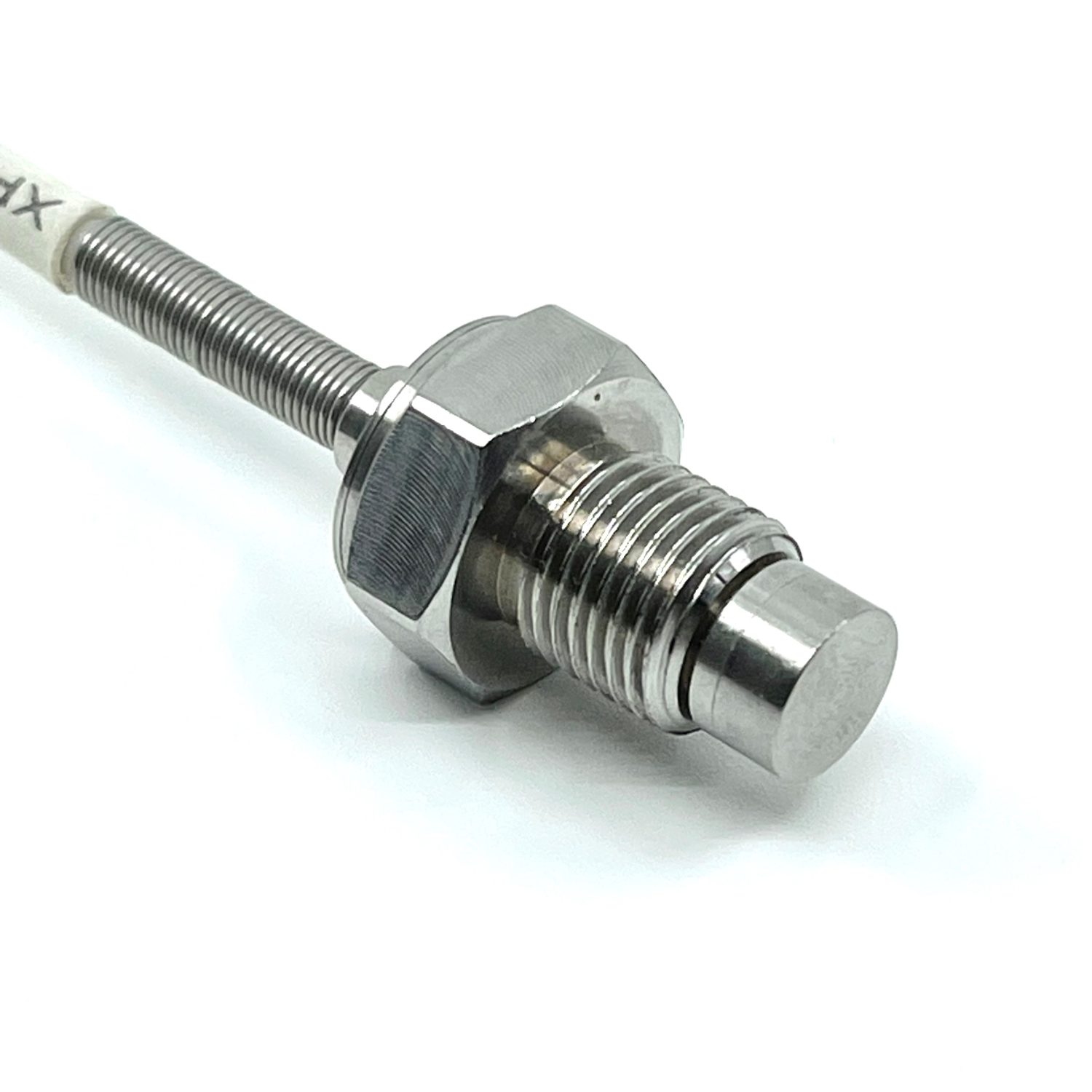

XPM10 M10 flush

Product Description

The model XPM10 is a miniature pressure transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. It is made of stainless steel or titanium and is available in standard ranges from 0-1 to 350 bar gauge, sealed gauge or absolute pressure references. Dynamic response varies on the pressure range however starts at 6 kHz for 1 bar range to 60 kHz for the 350 bar unit. The XPM10 incorporates Measurement Specialties’ cutting edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. A PT1000 temperature probe is optionally available as a custom design. The XPM10 may integrate different electronics for amplified outputs: A1 0.5-4.5V, A2 ±5V, A3 4-20mA. Custom designs available to measure Hydrogen, Oxygen but also specialist or customised fittings such as VCR/weldable connections.
