High Performance SiMEMS Accelerometers

SiMEMS board mounted accelerometers offering tactical and/or navigation grade performance designed for inertial applications. All sensors feature a compact designed housing, hermetically sealed, built-in self test and low mass. The GA50 is a high-performance open loop analogue output sensor exhibiting a VRW (residual noise) from < 1.3 μg/√Hz. All are ITAR free, development boards are available on request for performance verification.

Please wait, loading results...

High Performance SiMEMS Accelerometers

GA50 Thumbnail

GA50 Accelerometer

GA50 Open loop accelerometer

  • Range ±5g, ±40g, ±70g
  • Output: Differential voltage +/-2.4 VDC & Temp
  • Residual noise from 1.3 μg/√Hz
  • Non linearity: ±0.25% FS
  • Operating Temp: -50 Deg C to 85 Deg C

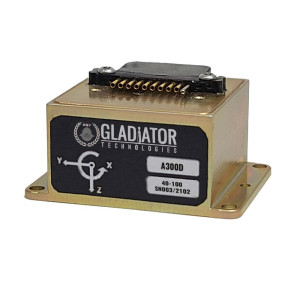

A300D

A300D Accelerometer Digital Output

Military packaged digital accelerometer

  • Ranges: +/- 40g
  • Bandwidth: 800 Hz
  • Digital output: RS-422/485
  • Ultra low noise: 0.058 mg/Hz
Load More
