Amplified IEPE

Integrated Electronics Piezoelectric (IEPE) accelerometers (also known as ICP® or CCDL accelerometers) are a form of piezoelectric sensor, used in the measurement of vibration. They consist of piezoelectric sensing elements, acted upon by a displaced mass, with internal high impedance electronics to convert the charge output to a voltage signal. IEPE accelerometers use a single set of wires for both the constant current power supply and the voltage output signal. The use of piezoelectric technology allows for measurement of far higher frequencies than those found in MEMS based sensors. IEPE accelerometers are the preference in most applications over their unamplified charge mode equivalent. However, the inbuilt electronics will limit the temperature range. StrainSense offer a wide range of IEPE sensors, with frequency responses ranging to 37kHz and up to 5000g dynamic ranges.

Please wait, loading results...

Amplified IEPE

KS901B.10

OEM ACCELEROMETER FOR MACHINE MONITORING

Models KS90B KS901 IEPE or Charge accelerometer

  • Up to +/-5000g dynamic range
  • 10 pC/g to 100 mV output, 10kHz bandwidth
  • -35 to 120 Deg C
  • Shear Design
KS98B10

KS98 Clip Mount NVH

Accelerometer for NVH applications

  • Up to +/-500g dynamic range
  • 10/100 mV/g output, 16kHz bandwidth
  • -40 to 120 Deg C
  • Shear Design, TEDS IEEE 1451.4

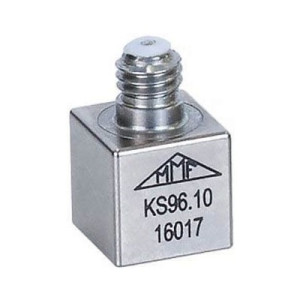

KS96B10

KS96B Miniature top connector

IEPE Accelerometer for Modal or Structural Analysis

  • Up to +/- 500g dynamic range
  • 10/100 mV/g output, 18kHz bandwidth
  • -40 to 120 Deg C
  • TEDS, Shear Design, 9mm cubed
Buy Online

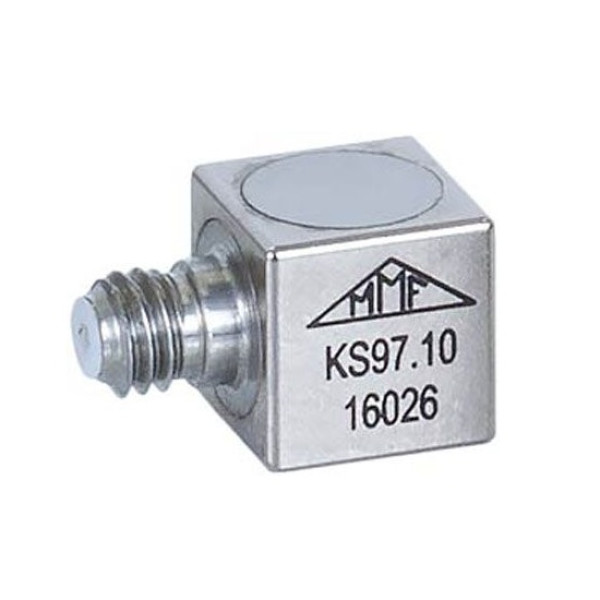

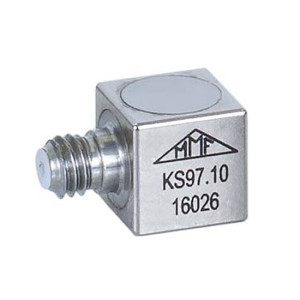

KS97B10

KS97B Miniature side connector

IEPE Accelerometer for Modal or Structural Analysis

  • Up to +/- 500g dynamic range
  • 10/100 mV/g output, 18kHz bandwidth
  • -40 to 120 Deg C
  • TEDS, Shear Design, 9mm cubed

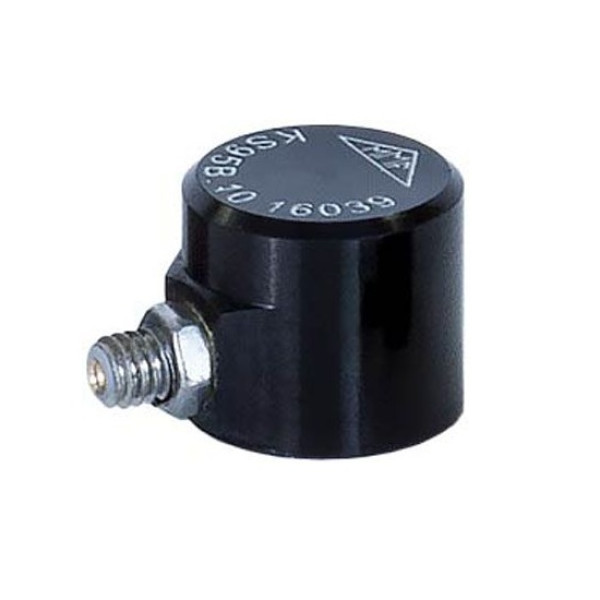

KS95C10

KS94/KS95 Low Mass high frequency

IEPE Accelerometer for high frequencies

  • Up to +/- 600g dynamic range
  • 10/100 mV/g output, 35kHz bandwidth
  • -40 to 120 Deg C
  • Shear Design, Low power option
Buy Online

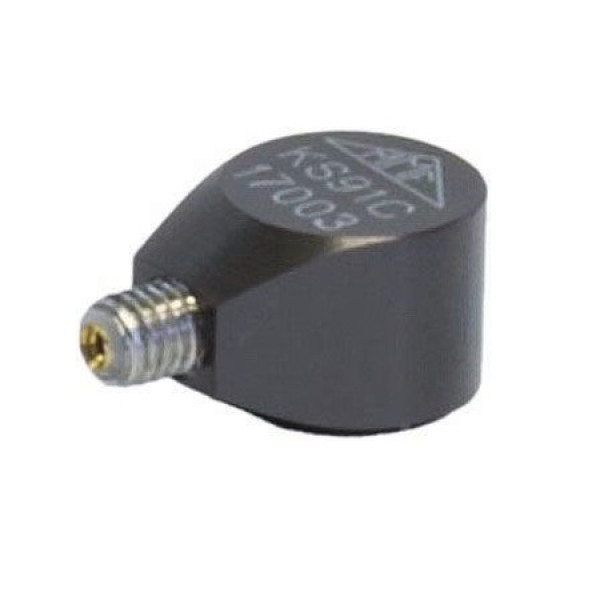

KS91C-1

KS91C Subminiature

IEPE Accelerometer for Low Mass applications

  • +/- 600g dynamic range
  • 10 mV/g output, to 37kHz bandwidth
  • -40 to 120 Deg C
  • Shear Design, insulated base
Buy Online

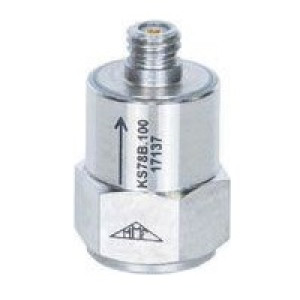

KS78C10

KS78 Low Mass TEDS

IEPE Accelerometer general purpose

  • Up to +/- 500g dynamic range
  • 10/100 mV/g output, 23kHz bandwidth
  • -40 to 120 Deg C
  • TEDS, Shear Design
Buy Online

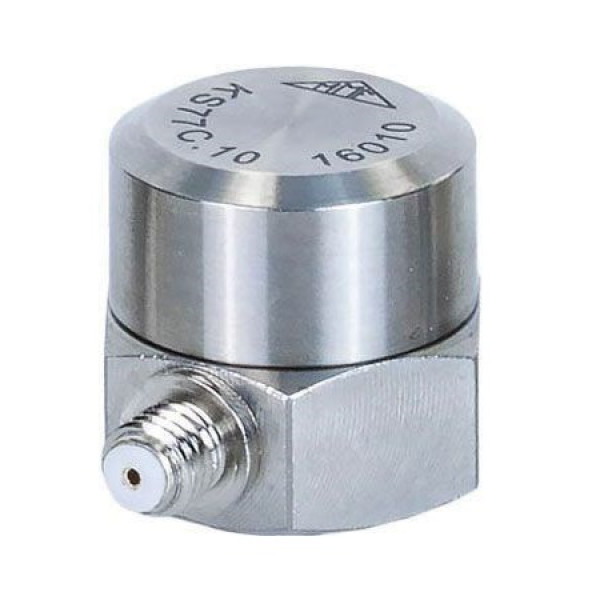

KS77C10

KS76/KS77 General Purpose

IEPE Accelerometer for high frequencies

  • Up to +/- 600g dynamic range
  • 10/100 mV/g output, 37kHz bandwidth
  • -20 to 120 Deg C
  • Shear Design, Low Noise

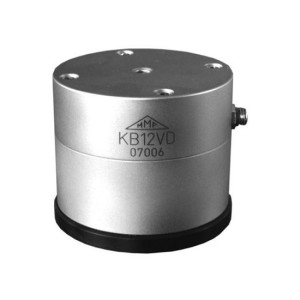

KB12VD

KB12/KS48 High Seismic Sensitivity

IEPE Seismic Accelerometer for Vibration

  • Up to +/- 0.6 or 6g
  • 10,000/1000 mV/g output
  • -20 to 120 Deg C
  • Bend or Shear Designs
Load More
