Miniature Compression Load Cells

Very small loadcells for compression and/or universal use. Most have mV/V output as standard however options are available for amplified voltage output, configurable from the data sheets. Some variants are designed specifically for cost in mind however, can be supplied in small volumes if required. Custom versions are available on request. The force sensing or force load is measured by a strain gauge (force sensing resistor) configured into a whetstome bridge. Force applied is proportional to the output.

Please wait, loading results...

Miniature Compression Load Cells

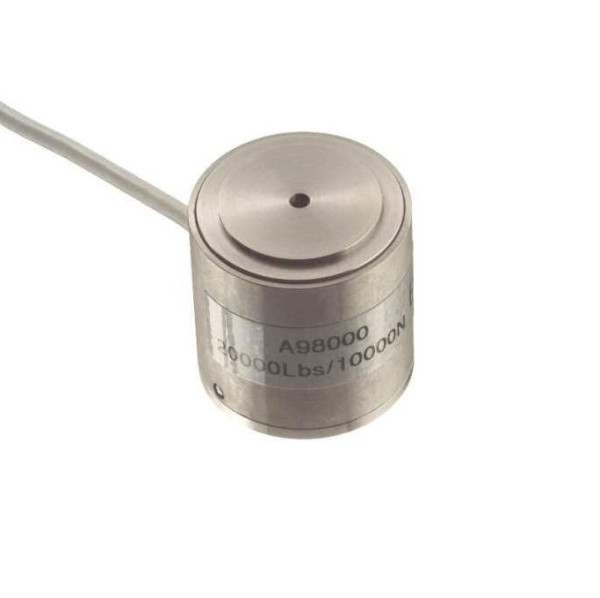

ELHS

ELHS high output

Miniature load cell, semi conductor

  • Ranges from 1kN to 50kN
  • Output 20 mV/V
  • Accuracy 0.5% full scale
  • Compression and tension/compression

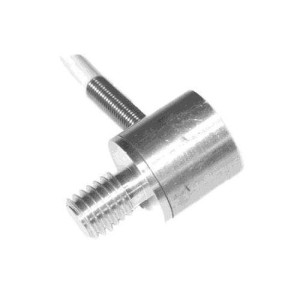

XFC205R

XFC205R high precision

Compression, miniature high precision

  • Range from 0-2N to 0-200N
  • Output mV/V
  • High accuracy on low ranges
  • High overload capability

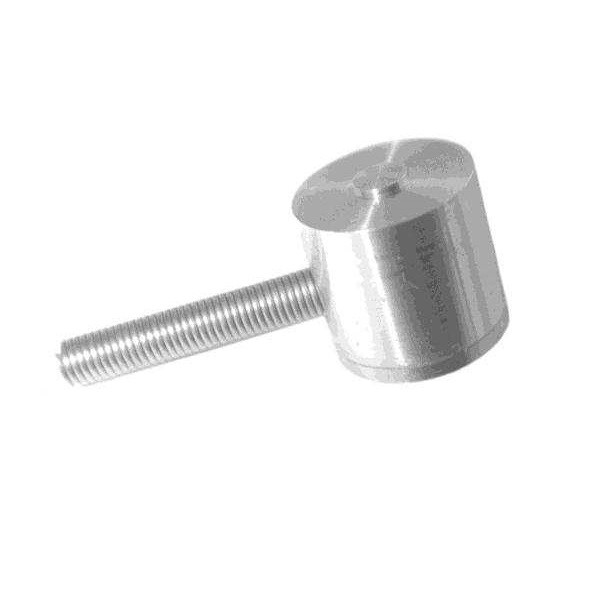

XFC200R

XFC200R miniature

Compression, miniature high precision

  • Range from 0-2N to 0-10kN
  • Output mV/V
  • High accuracy on low ranges
  • High overload capability

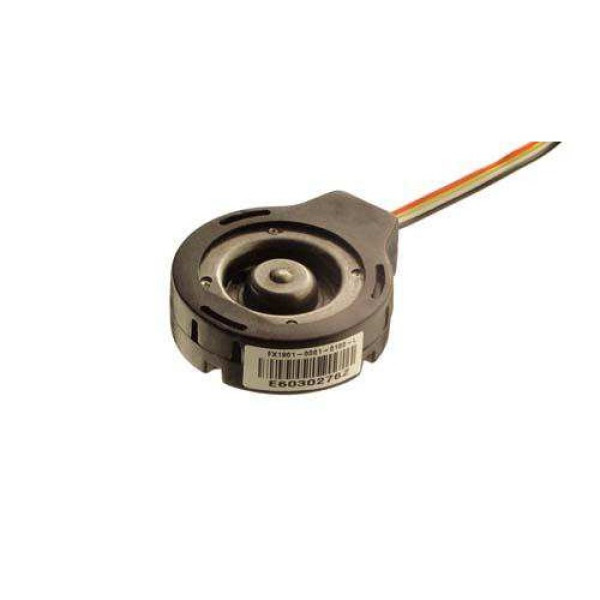

FX1901

FX1901 compression

Compression force sensor, OEM

  • Range 10 to 200lb (5-90KG)
  • Output 0-20 mV/V
  • Coin cell package
  • Anti-Rotation mounting feature

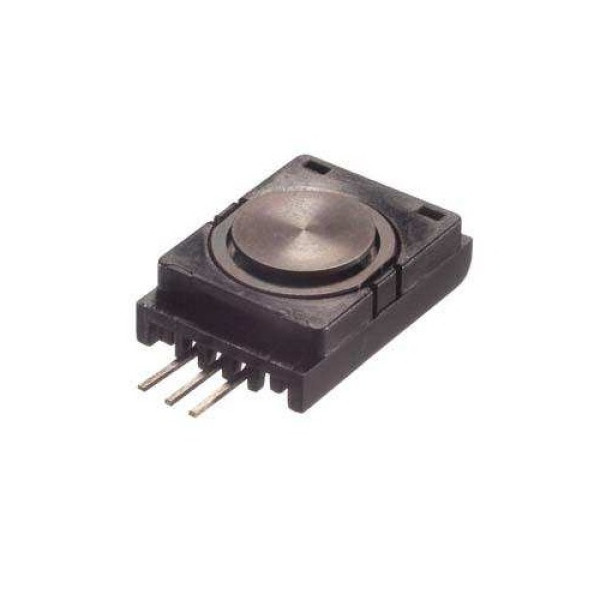

FS20

FS20 low force

Compression, replaces Honeywell FS01/FS03

  • Ranges 0-500 to 3000 grams
  • Output ratiometric or voltage
  • Used for peristaltic pumps
  • Compact design

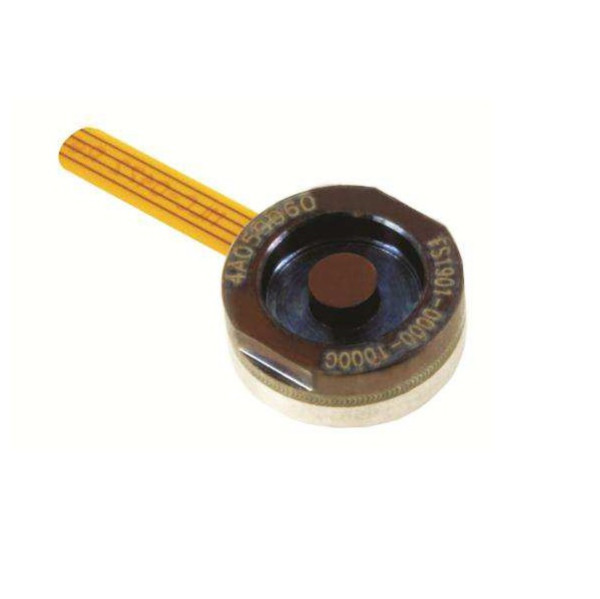

FS19

FS19 compression

Compression load cell, OEM

  • Range 0-500G to 3000G
  • Output 20 mV/V
  • Non-linearity +/-1% FS
  • Flexi cable for tight spaces

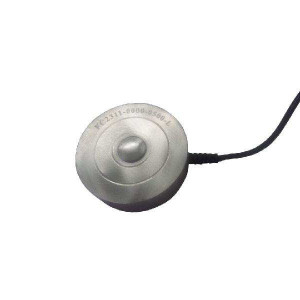

FC23

FC23 compression

Compression load cell, stainless

  • Ranges 0-50 to 2000 lb (23-900 KG)
  • Output mV or ratiometric
  • Compression only
  • All stainless steel construction

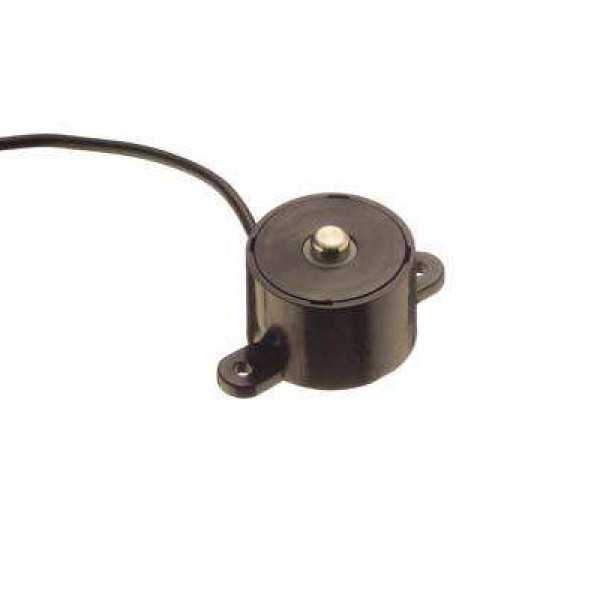

FC22

FC22 compression

Compression force sensor, low cost

  • Ranges 0-10 to 100 lbs (4.5 to 45 KG)
  • Output mV or 0.5-4.5 VDC
  • Compression only
  • Low cost, volume design

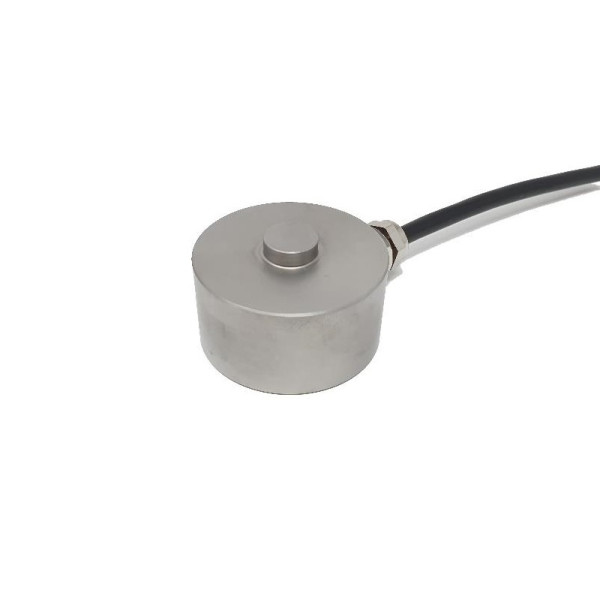

SCS COMPRESSION CELL

SCS compression cell IP68

Compression load cell IP68

  • Ranges 0-500KG to 20,000 KG
  • Output 2 mV/V
  • Accuracy 0.25% full scale
  • IP68 ingress protection

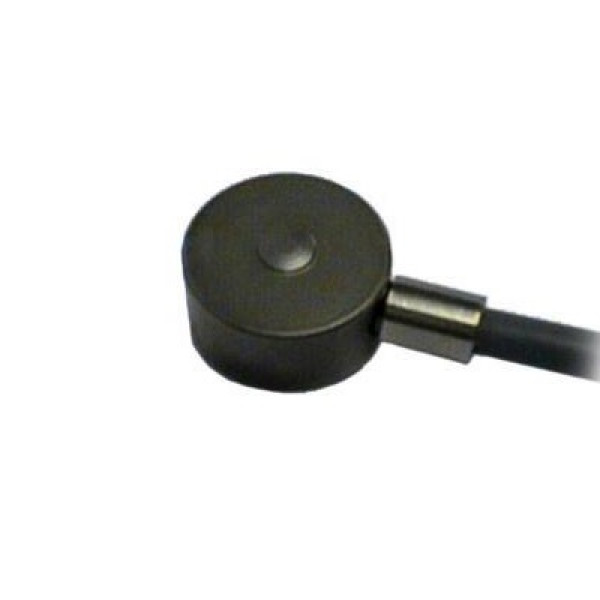

MCC

MCC miniature compression cell

Compact button load cell

  • Ranges 0-500N to 20kN
  • Output 2 mV/V
  • Accuracy 0.25% full scale
  • Sealed to IP65

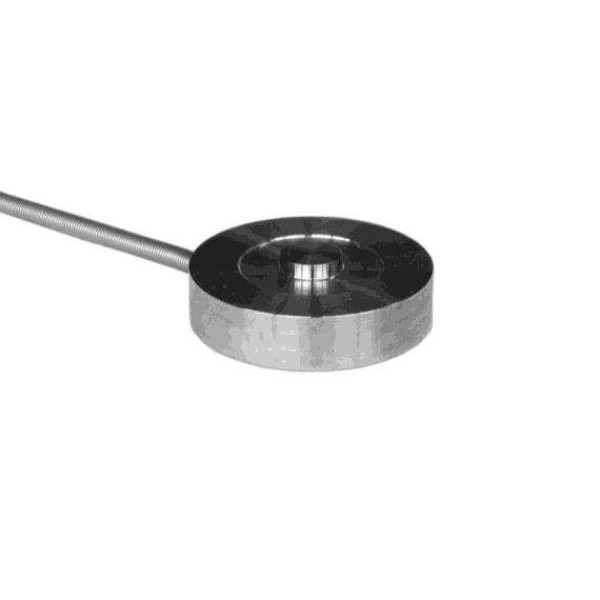

FN2640

FN2640 press fit

Load cell, press fit

  • Range from 100N to 50,000N
  • Output mV/V
  • Stainless Steel or Aluminum
  • Press fit

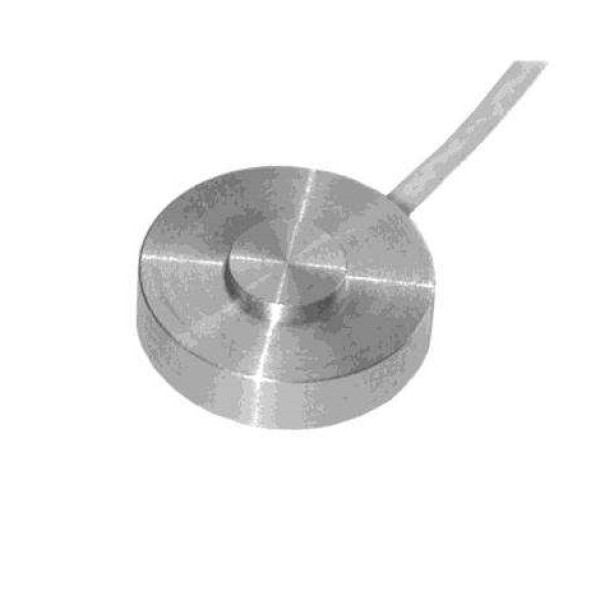

XFL212R

XFL212R Ultra Flat

Compression load cell, ultra flat

  • Ranges from 0-5 to 0-500N
  • Output up to 150mV FS
  • Extremely Flat 3,5 mm
  • High stiffness, fatigue applications
