LVDTs AC Output

An AC operated LVDT linear position sensor does not contain any internal electronics but does require an external signal conditioner to operate. The LVDT signal conditioner provides the external oscillator, carrier amplifier (or demodulator) and relevant filters. Advantages of an AC based LVDT include high operating temperatures, compact size, high shock & vibration. All units can be provided with cores, rods, mounting blocks and instrumentation to provide the complete solution. Custom designs are available on request for unique applications such as space and satellites.

LVDT MANUAL

Please wait, loading results...

LVDTs AC Output

LVDT-ISAG

ISAG LVDT with Rod Ends

AC coupled LVDT 2-200mm

  • Ranges from 2mm to 200mm
  • Output mV/V AC coupled
  • 0.5% linearity as standard
  • IP65 with options to IP68
Buy Online

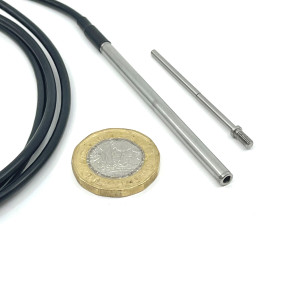

LVDT_IZAL5_K_4

IZAL LVDT miniature diameter

Miniature diameter LVDT AC Output

  • Ranges from 2mm to 10mm
  • Output via Signal Conditioner
  • 0.5% linearity as standard
  • IP65 ingress protection

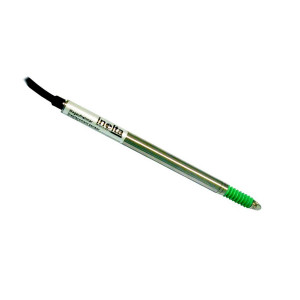

LVDT-ILAT

ILAT LVDT 8mm Diameter Bellows

Short stroke LVDT 8mm bellows protection

  • Ranges from 4mm to 8mm
  • Output mV/V
  • 0.25% linearity (0.1% option)
  • Ingress Protection IP65

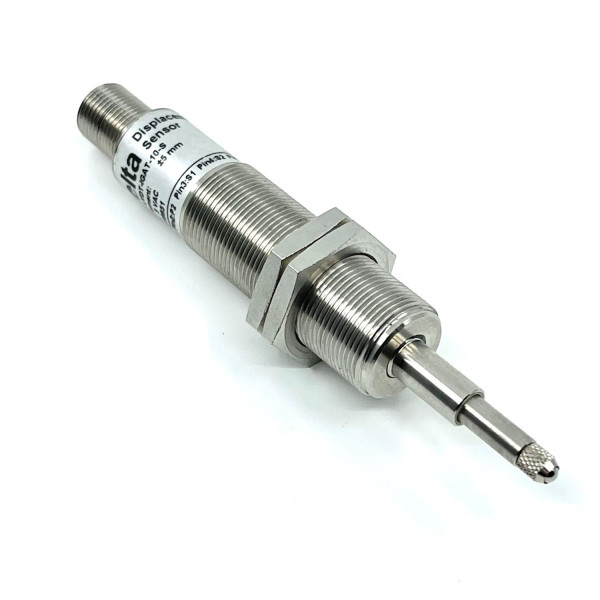

IGAT LVDT M18 thread with Spring Return

AC LVDT with spring return M18 external thread

  • Ranges from 2mm to 20mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (option 0.25%)
  • IP65 with options to IP68

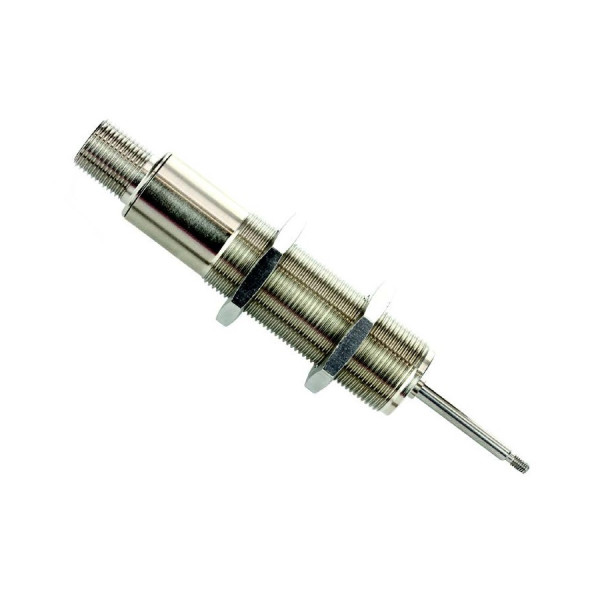

LVDT-IGAL

IGAL LVDT M18 thread Non Guided

LVDT with non guided armature M18 external thread

  • Ranges from 2mm to 20mm
  • Output mV/V
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68
LVDT-ISAL

ISAL LVDT Non Guided Armature

Long stroke AC coupled LVDT

  • Ranges from 2mm to 200mm
  • Output mV/V
  • 0.5% linearity (options to 0.1%)
  • IP65 with options to IP68

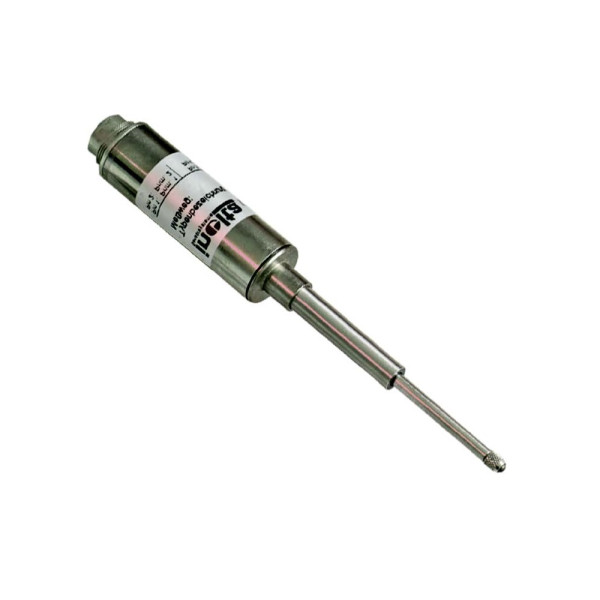

LVDT-ISAT

ISAT LVDT with Spring Return

Short stroke LVDT with spring return

  • Ranges from 2mm to 50mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (option 0.25%)
  • Ingress Protection IP65
LVDT-IMAL

IMAL LVDT M12 thread Non Guided

Short stroke LVDT M12 external thread

  • Ranges from 2mm to 20mm
  • Output mV/V
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68

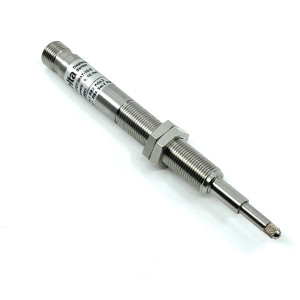

LVDT_IMAT

IMAT LVDT M12 Thread with Spring Return

AC short stroke LVDT spring return

  • Ranges from 2mm to 20mm
  • Output mV/V
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68

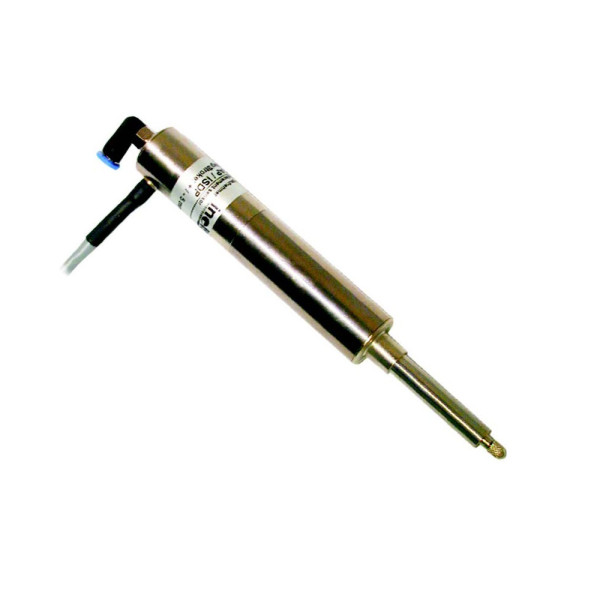

LVDT-ISAP

ISAP LVDT with Pneumatic Function

AC LVDT with pneumatic spring return

  • Ranges from 5mm to 20mm
  • Output mV/V
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68
LVDT-IKAL

IKAL LVDT 8mm Diameter Non Guided

Short stroke LVDT 8mm external diameter

  • Ranges from 2mm to 20mm
  • Output mV/V
  • 0.5% linearity (0.25% option)
  • Ingress Protection IP65

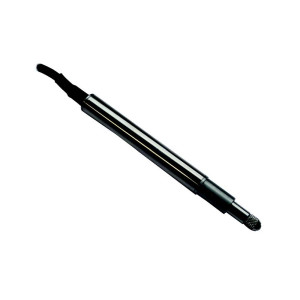

LVDT-IKAT

IKAT LVDT 8mm Diameter Spring Return

Short stroke AC LVDT 8mm diameter

  • Ranges from 2mm to 20mm
  • Output mV/V
  • 0.5% linearity (0.25% option)
  • IP65 (Optional IP67, IP68)
Load More
