LVDTs DC Output

DC Linear variable differential transformers (LVDT) convert the physical changes in displacement into a DC electrical output. This output can be either voltage or current. The advantages are easy and fast installation, elimination of signal conditioning, loop power options for long signal transmission lengths, error compensation, pre-calibrated and generally a lower system cost. We have many options for short stroke LVDTs, long stroke LVDTs, Submersible LVDT or even Subsea LVDTs. All units can be provided with cores, rods, mounting blocks and instrumentation to provide the complete solution.

LVDT MANUAL

Please wait, loading results...

LVDTs DC Output

Buy Online
LVDT-ISDG50-K2-2442

ISDG series LVDT with Rod Ends

LVDT with voltage or current output

  • Ranges from 2mm to 200mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity as standard
  • IP65 with options to IP68
Buy Online

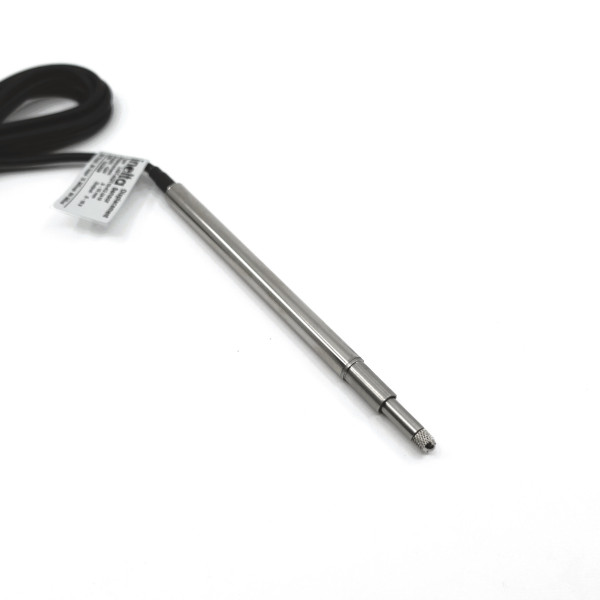

LVDT-IKDT10-K2-2410

IKDT LVDT with Spring Return

LVDT with spring return 2mm-20mm

  • Ranges from 2mm to 20mm
  • Output 0-5 or 0-10 VDC
  • 0.3% linearity (option 0.1%)
  • Ingress Protection IP65

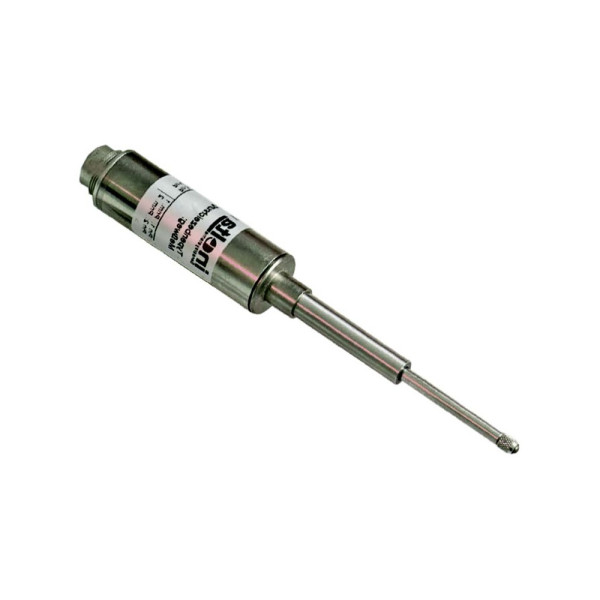

LVDT-ISDT

ISDT LVDT with Spring Return

LVDT with spring return 2mm-50mm

  • Ranges from 2mm to 50mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (option 0.1%)
  • Ingress Protection IP65

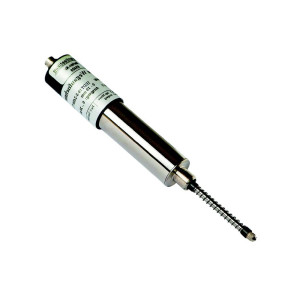

LVDT-IEDT

IEDT LVDT Economy series Spring Return

Economy Analogue LVDT Spring Return

  • Ranges from 2mm to 50mm
  • Output Voltage or Current 4-20mA
  • 0.75% linearity (0.25% option)
  • Ingress IP65
Buy Online

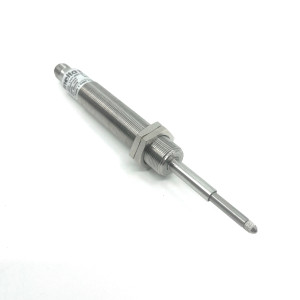

LVDT_IGDT2-_S_2442_1

IGDT LVDT M18 thread with Spring Return

LVDT with spring return M18 external thread

  • Ranges from 2mm to 20mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity as standard
  • IP65 with options to IP68

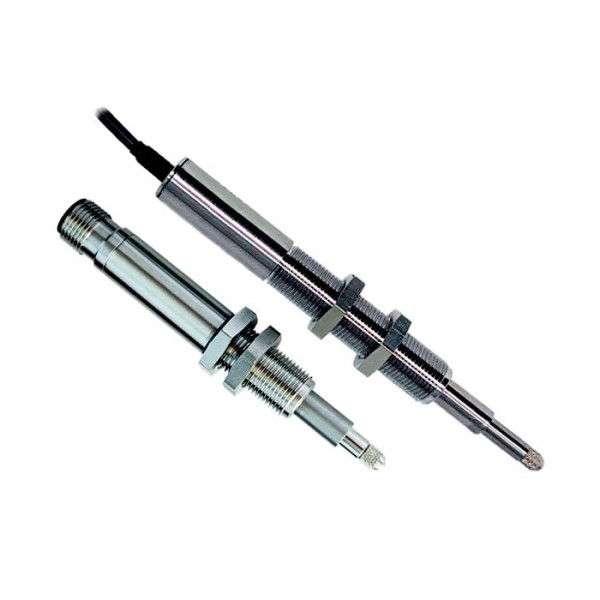

LVDT-IMDT

IMDT LVDT M12 thread with Spring Return

LVDT with spring return M12 external thread

  • Ranges from 2mm to 20mm
  • Voltage output
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68
LVDT-ISDL

ISDL LVDT Non Guided Armature

LVDT with integral connector option

  • Ranges from 2mm to 200mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (option 0.25%)
  • IP65 with options to IP68

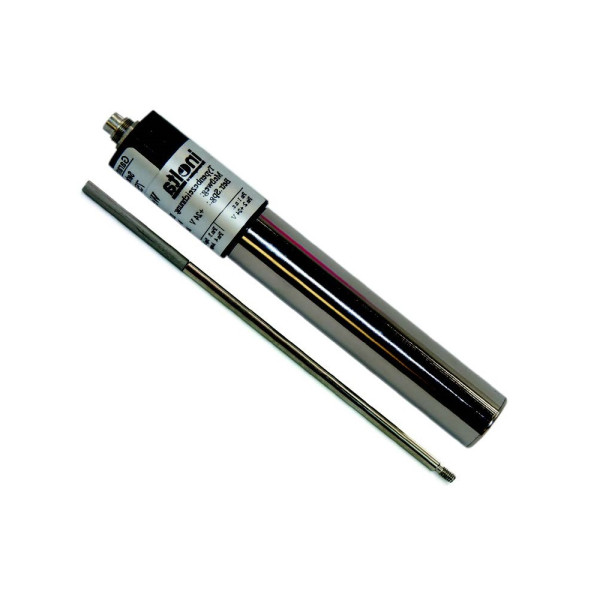

LVDT-IEDL

IEDL LVDT Economy series Non Guided

Economy series Analogue output LVDT n

  • Ranges from 2mm to 50mm
  • Output Voltage or Current 4-20mA
  • 0.75% linearity (0.25% option)
  • Ingress IP40

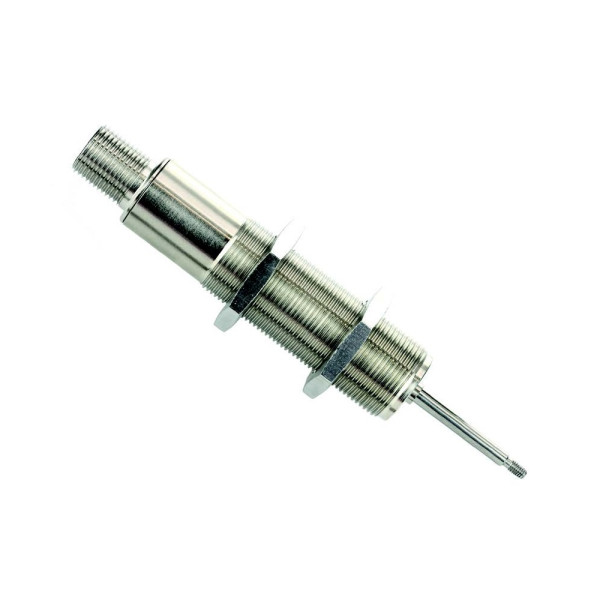

LVDT-IGDL

IGDL LVDT M18 thread Non Guided

LVDT with non guided armature M18 external thread

  • Ranges from 2mm to 20mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68

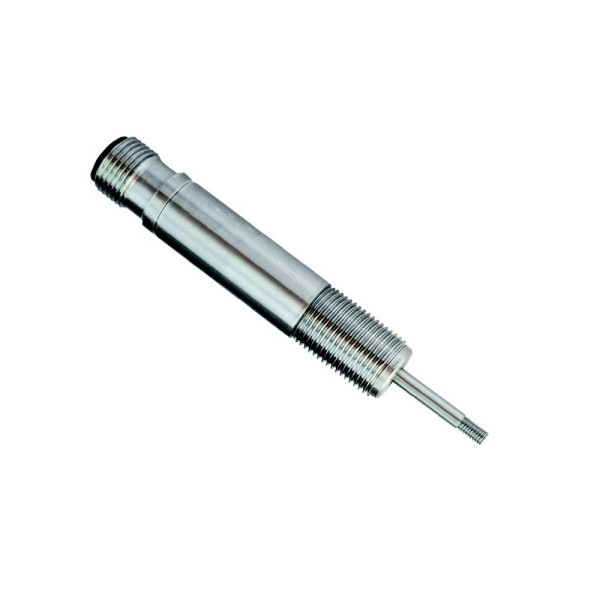

LVDT-IMDL

IMDL LVDT M12 thread Non Guided

Short stroke LVDT M12 external thread

  • Ranges from 2mm to 20mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68

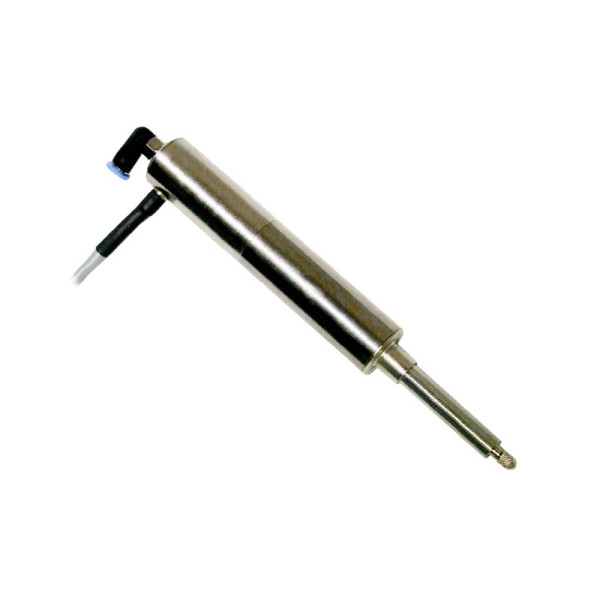

LVDT-ISDP

ISDP LVDT with Pneumatic Function

LVDT with pneumatic spring return

  • Ranges from 5mm to 20mm
  • Output Voltage or Current 4-20mA
  • 0.5% linearity (0.25% option)
  • IP65 with options to IP68
Load More
