Flush Diaphragm

The Pressure Sensors can be used where a recessed diaphragm is not wanted (possibly due to the volume, or viscosity of media), or designed to sit flush to the inside of the vessel wall. Various designs are available either in small sizes down to M4 thread, Ultra miniature O’ring sealed or versions which can be bonded in the application. Most sensors within this range are suitable for high dynamic frequency investigations and available in mV or amplified outputs.

Please wait, loading results...

Flush Diaphragm

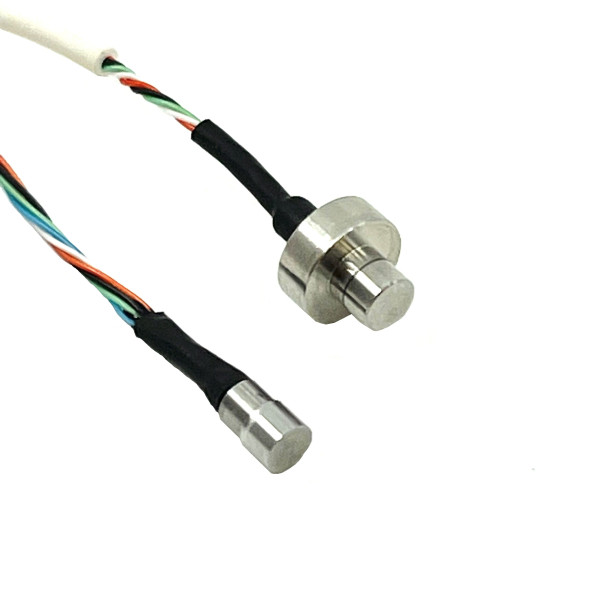

EPB_Family-1

PPB Miniature Pressure Sensor

Miniature, high frequency response

Ranges from 0.3 to 350 bar gauge or abs
Output mV
Linearity up to ±0.5% FS
Stainless steel construction

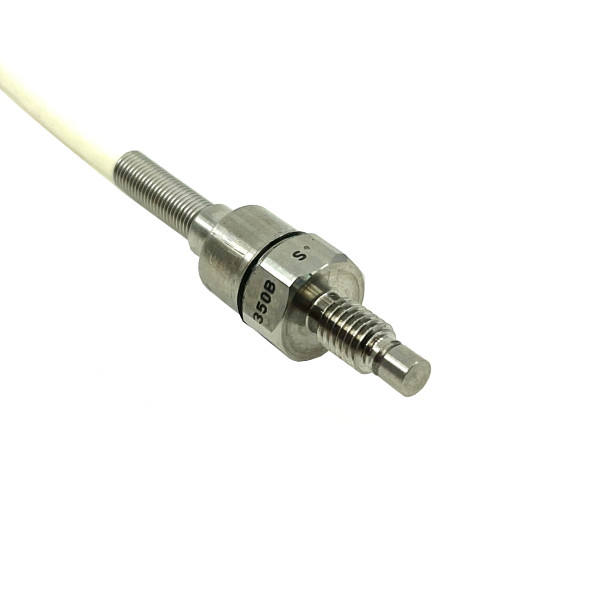

PM5_2-1

PM5 Miniature Thread Pressure Sensor

Miniature, dynamic response pressure sensor

Ranges 1 to 350 bar gauge, sg, abs
Output mV or 0.5 to 4.5V
Linearity up to ±0.25% FS
Titanium construction

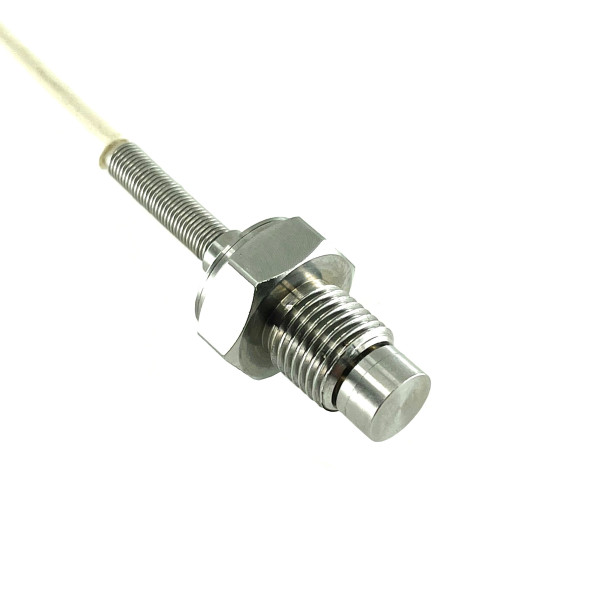

PM10C_1-1

PM10C Miniature Thread Pressure Sensor

Miniature, dynamic response pressure sensor

Ranges 1 to 350 bar gauge, sg, abs
Output 4-20mA, mV or voltage
Linearity up to ±0.5% FS
Stainless Steel construction

PKHT_1-1

PKHT High Temperature Miniature

Miniature pressure sensor for high temperature

Ranges 10 to 350 bar gauge, sg, abs
Output 0-10mV
Linearity ±0.25% FS
-50 to 220 Deg C operating

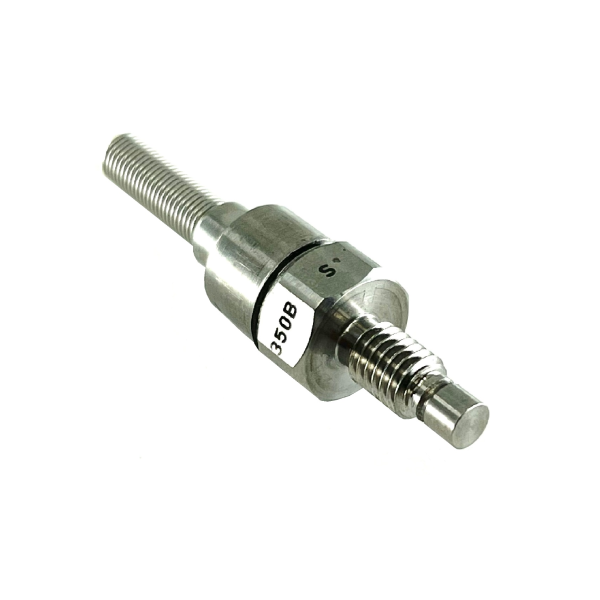

PM5_1-1

PM6 Miniature Pressure Sensor

Miniature pressure sensor

Ranges 20 to 1000 bar gauge, sg, abs
Output mV, 0.5 to 5V
Linearity ±0.25% FS
Stainless steel construction

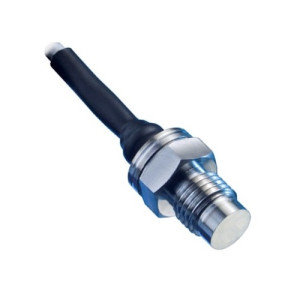

PFD121-1

PFD121 flush miniature pressure sensor

Miniature flush diaphragm pressure sensor

Ranges 0-15 to 0-700 bar gauge
Outputs mV
Accuracy 0.50% FS
High bandwidth

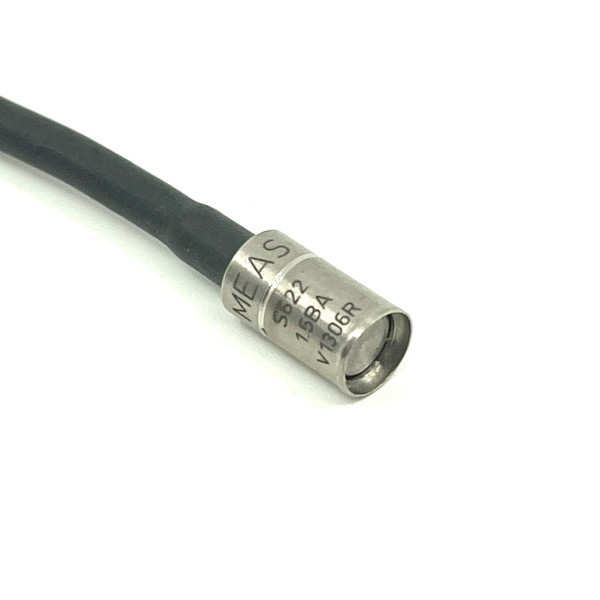

EPB_PW_1

EPB-PW Pore Water Sensor

Pore water pressure sensor

Ranges 0-1 to 0-70 bar gauge or abs
Output to 100mV
Accuracy 0.25% FS
Ceramic stones or bronze filters
