High Accuracy & Performance

Speciality Pressure either for unique applications such as Military, Aerospace or high performance test rigs. All are compact and have sensing technology that delivers long term stability. All Pressure Sensors are configurable from the data sheets for pressure range, pressure reference, electrical connections, output and frequency response. Custom versions can be designed on request. Sensor selection is by size, 8.6mm to 22mm available.

Please wait, loading results...

High Accuracy & Performance

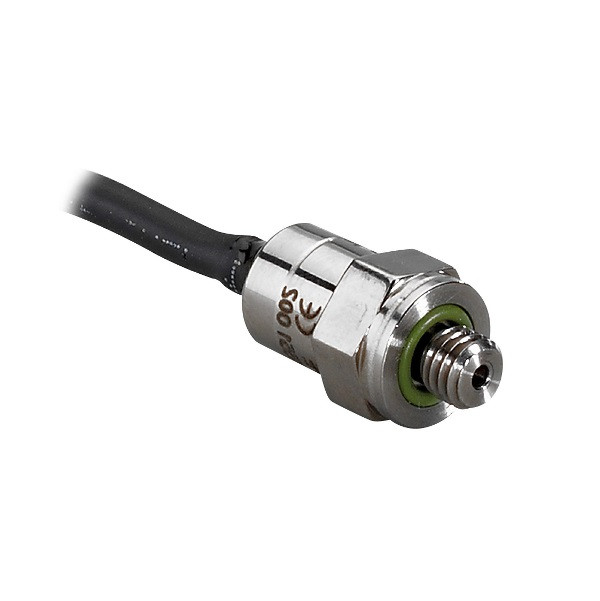

PST860

PST860 subminiature

Sub miniature 8.6mm diameter pressure sensor

Ranges -1-4 to 0-250 bar gauge or abs
Output options 100mV, 0.5 to 4.5VDC
Accuracy 0.25% FS
Ultra light weight 3 grams

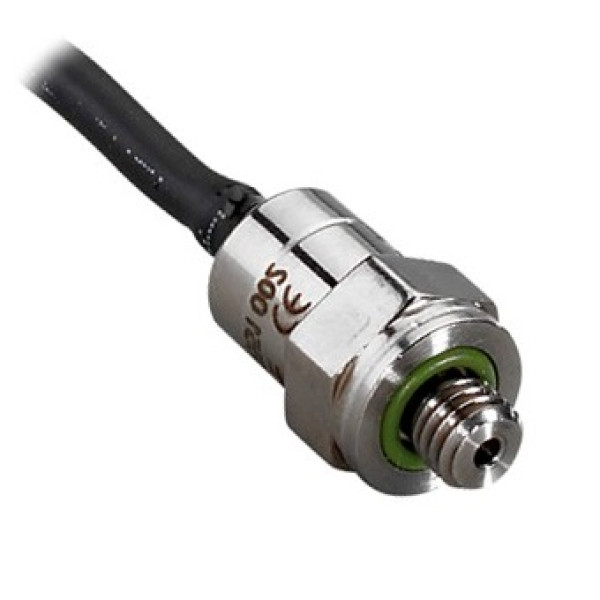

PHE861-1

PHE860 sub-miniature for harsh environments

Sub-miniature pressure sensor large bandwidth

Ranges -1/+4 to 0-250 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC
Accuracy 0.25% FS
High frequency option (3kHz)

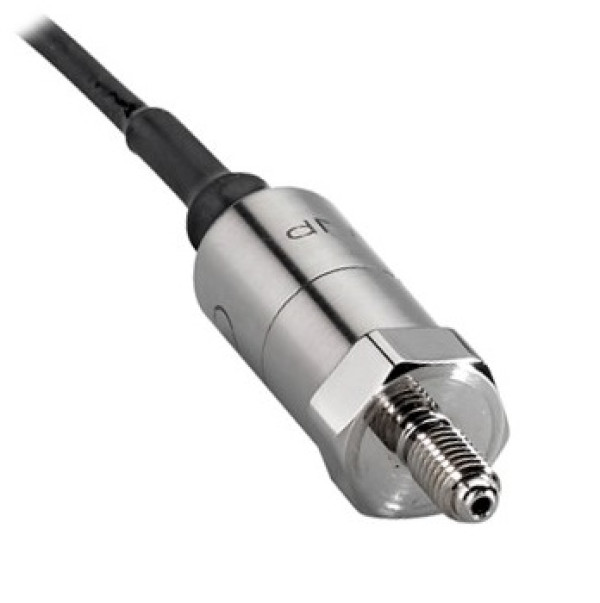

PHE121-1

PHE120 miniature increased bandwidth

Miniature pressure sensor with high bandwidth

Ranges +-1 Bar to 0-400 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC
Accuracy 0.25% FS, optional 0.1%
Increased frequency response

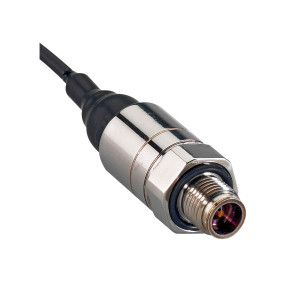

PSF160-1

PSF160 miniature dynamic

Miniature pressure sensor for high bandwidth

Ranges -1/+4 to 0-250 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC, 0-5VDC
Accuracy 0.25% FS
High frequency

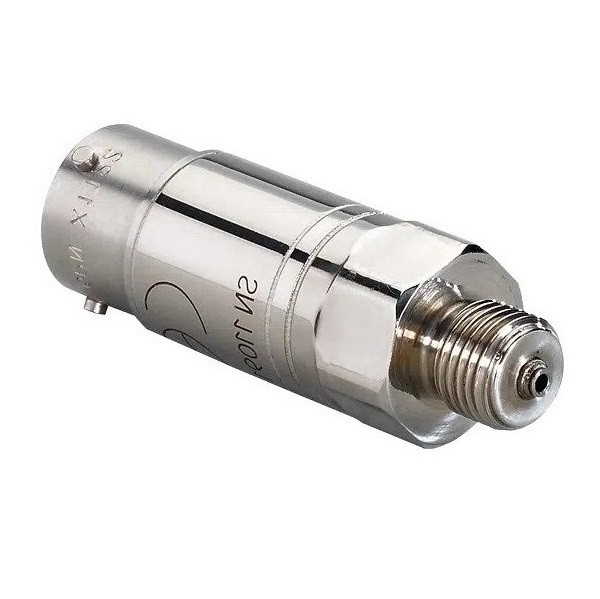

pdc167-1

PST160 miniature

Miniature pressure sensor

Ranges -1/+2 to 0-600 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC, 0-5VDC, mA
Accuracy 0.25% FS, optional 0.1%
Modular construction, many options

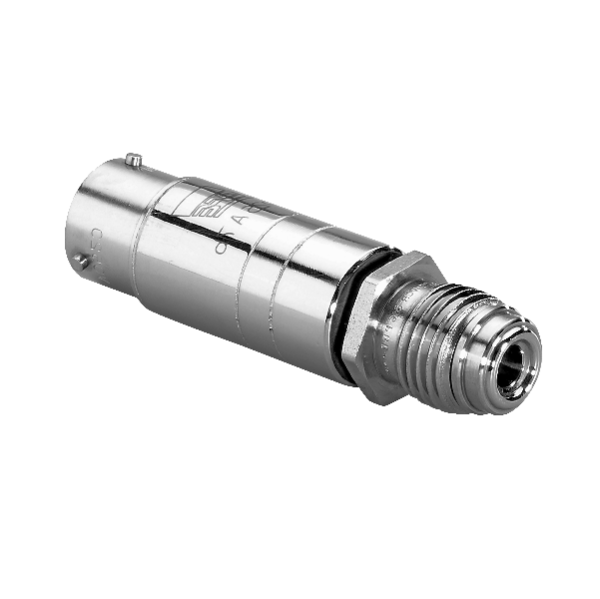

PNA160-1

PNA160 Pressure Sensor For High Radiation

Miniature pressure sensor

Ranges -1/+3 to 3-250 bar gauge, abs, sg
Output 0-10V or 4-20mA
Accuracy ±0.35% FS max
Operating from -40 to +125°C

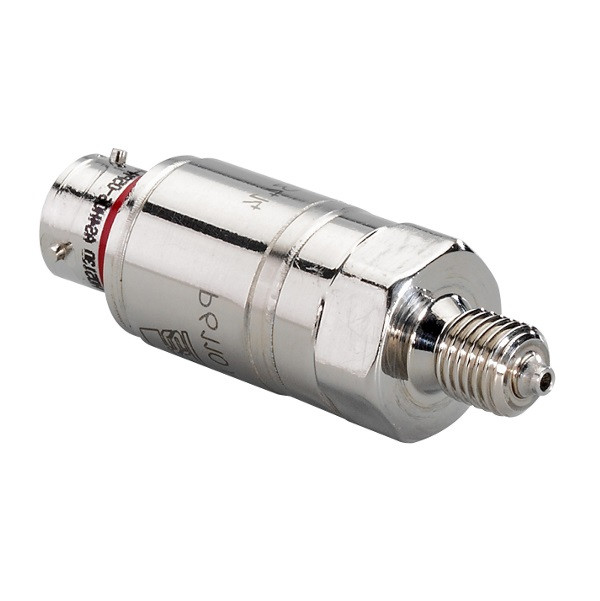

PHE161

PHE160 miniature harsh environment

Miniature pressure sensor, high stability

Ranges -1/+2 to 0-250 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC
Accuracy 0.25% FS, option 0.1%
Option frequency to 3 kHz

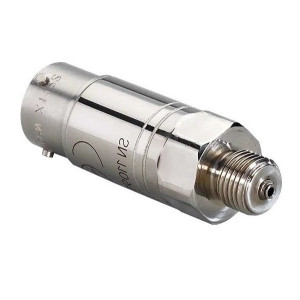

pdc167-1

PDC160 High Accuracy with Digital Correction D16.6mm

High accuracy with digital correction

Ranges -1/+3 to 3-400 bar gauge, abs or sg
Output 0.5-4.5V
Accuracy ±0.5% FS
Operating from -55 to +125°C

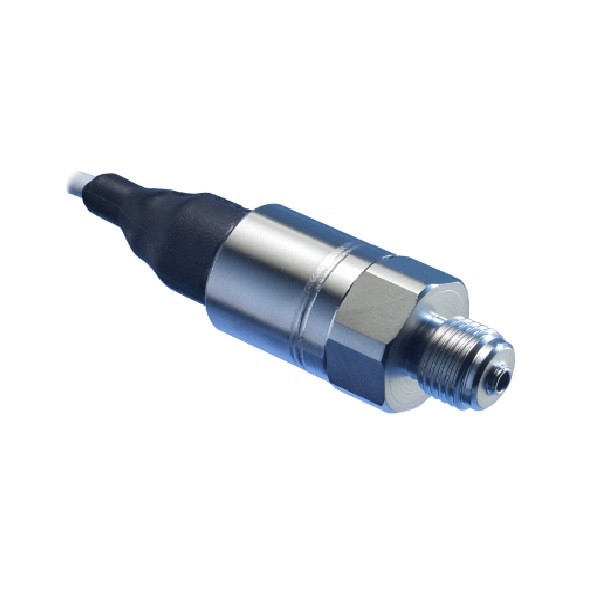

PGP161

PGP160 high performance

High performance miniature pressure sensor

Ranges -1/+2 to 0-600 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC
Accuracy 0.1% FS, option 0.05%
Optional frequency to 3 kHz

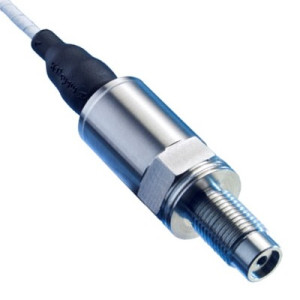

PHP161-1

PHP160 for high pressure

High pressure miniature transducer

Ranges 0-2000 to 0-3000 bar gauge
Outputs mV, 0.5 to 4.5VDC
Accuracy 0.25% FS, option 0.1%
Fatigue rated sensor

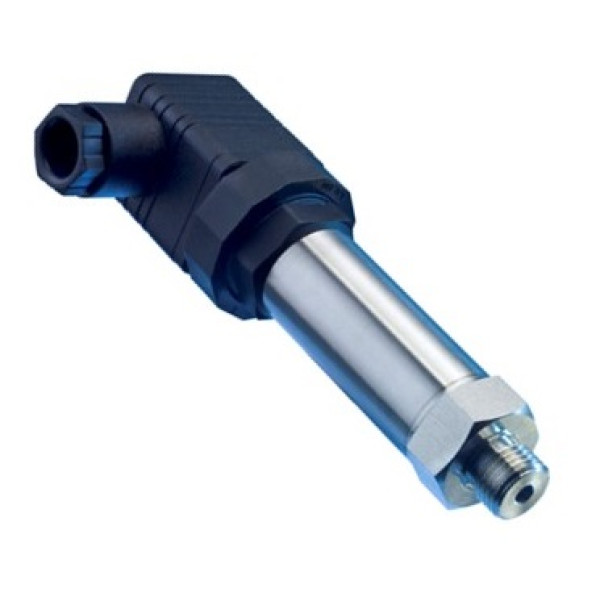

PGP220-1

PGP220 High performance

High performance pressure sensor

Ranges +/-1bar to 0-600 bar gauge, abs
Outputs mV, 0.5 to 4.5VDC, 0-5, 0-10V
Accuracy 0.25% FS, option 0.1%
Option frequency to 3 kHz

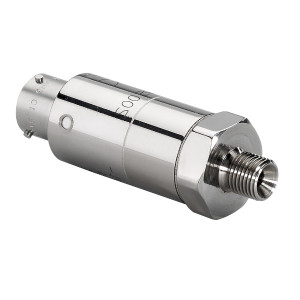

PHE221

PHE220 compact high accuracy

Compact pressure transducer for harsh environments

Ranges 100mbar to 600 bar gauge, abs
Outputs mV, 0-5V, 1-6V
Accuracy 0.25% FS, option 0.1%
Option frequency to 2 kHz

PHE221

PGA220 aerospace transducer

Aerospace pressure transducer

Ranges -1-2 to 0-600 bar gauge or abs
Outputs mV, 0.5 to 4.5VDC, 5VDC, mA
Accuracy 0.25% FS
Compensated -55 to 125 Deg C

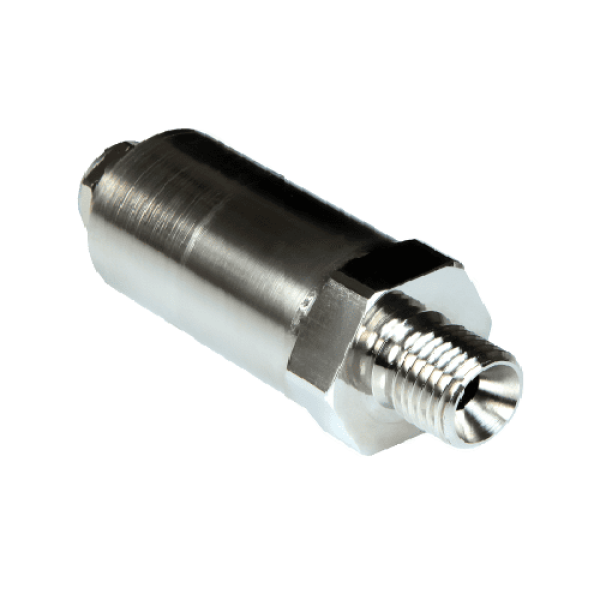

PHA220

PHA220 Pressure transducer for hydrogen applications

Compact pressure sensor

Ranges 20 to 700 bar g, abs or sg
Output 0.5 to 4.5V
Accuracy ±0.25% F.S. between -10 to +40°C
Hydrogen and high pressure compatible
