High Temperature

Most of our standard Pressure Sensors have the ability to go to 150 Deg C however this section is focused on higher temperatures to 250 Deg C. For higher temperatures, please see the Piezo electric range which can go to 1000 Deg C (but mainly aimed at Test & Measurement). Amplified versions have the capability to 175 Deg C but with the use of in-line electronics solutions can be provided to 250 Deg C such as the PET160. Options are available for compound pressure, absolute or gauge. Pressure ranges to 600 Bar. If you have a particular issue, please discuss as there maybe an alternative solution such as using a Temperature Isolator if space is not limited.

Please wait, loading results...

High Temperature

PKHT_1-1

PKHT High Temperature Miniature

Miniature pressure sensor for high temperature

  • Ranges 10 to 350 bar gauge, sg, abs
  • Output 0-10mV
  • Linearity ±0.25% FS
  • -50 to 220 Deg C operating

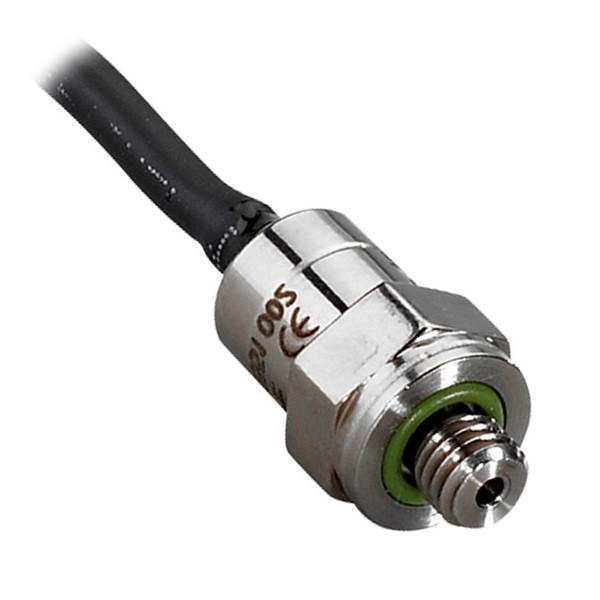

PHT860

PHT860 sub-miniature for high temperatures

Sub-miniature pressure sensor for high temperatures

  • Ranges -1/+4 to 0-250 bar gauge, abs
  • Outputs mV, 0.5 to 4.5VDC
  • Accuracy 0.25% FS
  • Up to 175 Deg C usage

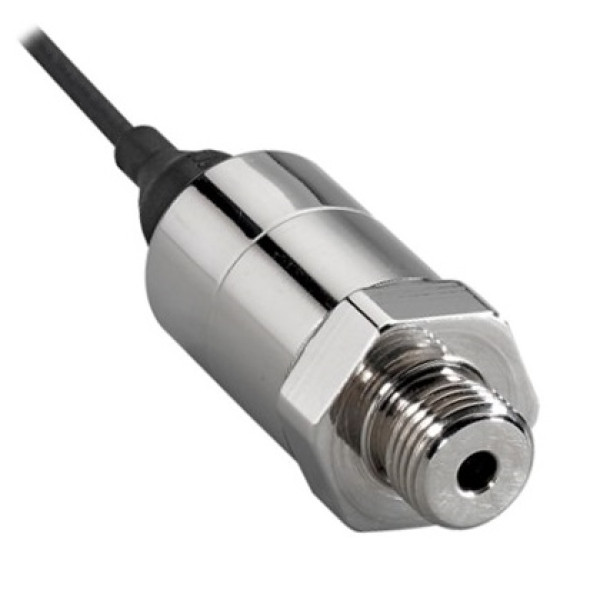

PHT220

PHT220 high temperature pressure sensor

High temperature pressure sensor

  • Ranges -1/+2 to 0-600 bar gauge, abs
  • Outputs 0-5V, 0.5 to 4.5VDC
  • Accuracy 0.25% FS, option 0.1%
  • Up to 175 Deg C useage

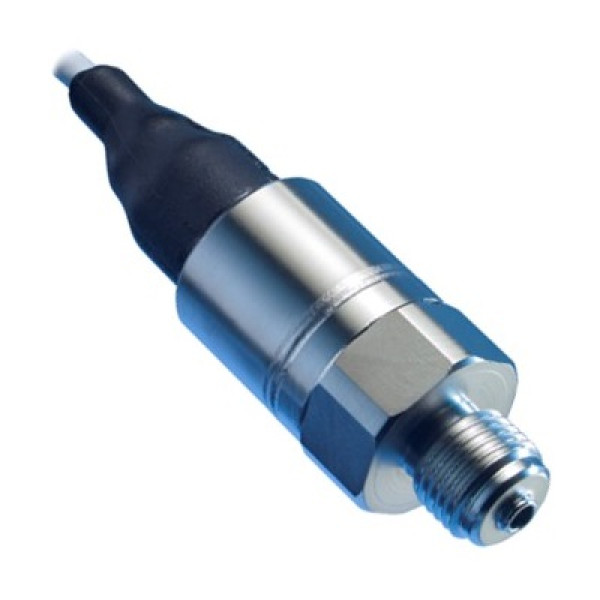

PHT160

PHT160 high temperature miniature

Miniature pressure sensor for high temperature

  • Ranges -1/+4 to 0-400 bar gauge, abs
  • Outputs mV, 0.5 to 4.5VDC
  • Accuracy 0.25% FS
  • Up to 175 Deg C useage

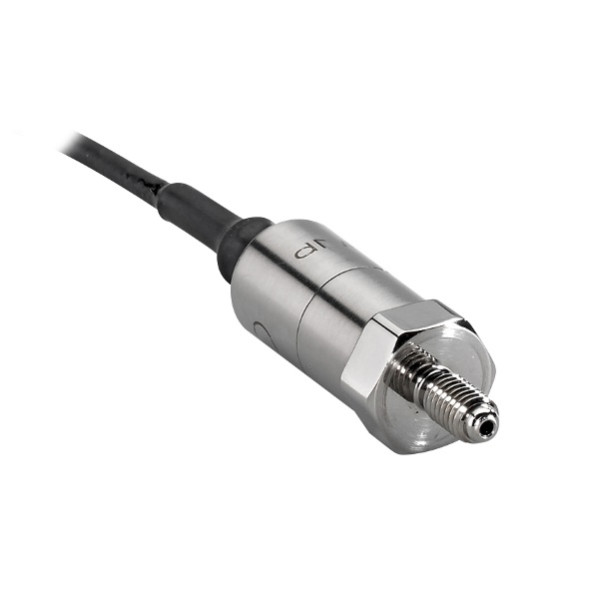

PHT121

PHT120 High Temp Miniature Pressure

Miniature pressure sensor for high temperature

  • Ranges +/-1bar to 0-400 bar gauge, abs
  • Outputs mV, 0.5 to 4.5VDC
  • Accuracy 0.25% FS
  • Up to 175 Deg C usage

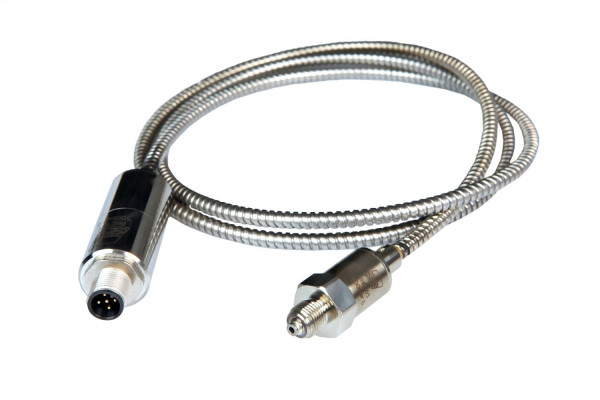

PET160 extreme temperature

Pressure sensor extreme high temperatures

  • Ranges 0-20 to 0-600 bar gauge
  • Outputs mV, 0.5 to 4.5VDC, 0-5VDC
  • Accuracy 0.25% FS, option 0,1%
  • Use up to 250 Deg C
PM5_1-1

PM6 Miniature Pressure Sensor

Miniature pressure sensor

  • Ranges 20 to 1000 bar gauge, sg, abs
  • Output mV, 0.5 to 5V
  • Linearity ±0.25% FS
  • Stainless steel construction
