High Temperature Strain Gauges

High Temperature Strain Gauges covering temperature ranges from 200ºC to 1325ºC and available in a variety of installation methods including bonding with ceramic or rokide flame spray process or weldable. The High Temperature Strain Gauges can be provided in quarter, half, full bridge or Rosette configurations for either static or dynamic measurements and available in a basic ‘free filament’ form or mounted to a weldable stainless steel or Hastelloy shim use depending on model. Each High Temperature Strain gauge model has several configurable options including impedance, cable material, gauge alloy, gauge factor and pre-curved shims. Applications include Aerospace & Power turbines, Automotive testing, Nuclear reactor structural health.

Please wait, loading results...

High Temperature Strain Gauges

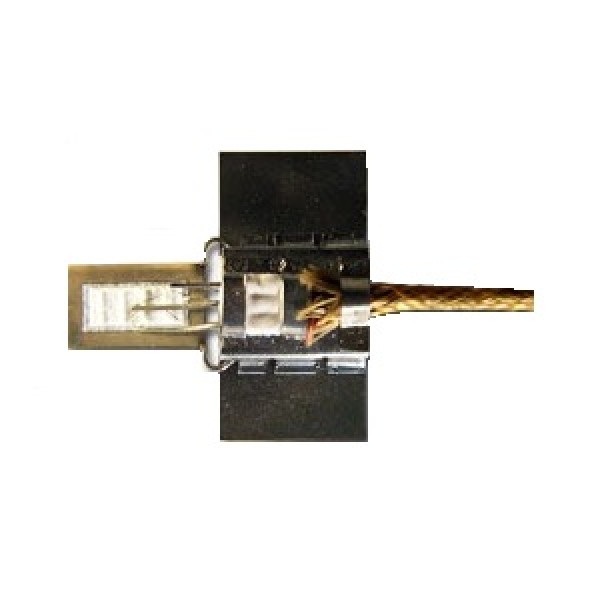

HBWAH

HBWAH Weldable Strain Gauge

Static high temperature strain gauge 1/4, 1/2, Rosette

  • Static strain to 700ºC
  • Max temperature 850ºC
  • Leadout attached
  • Rapid mounting

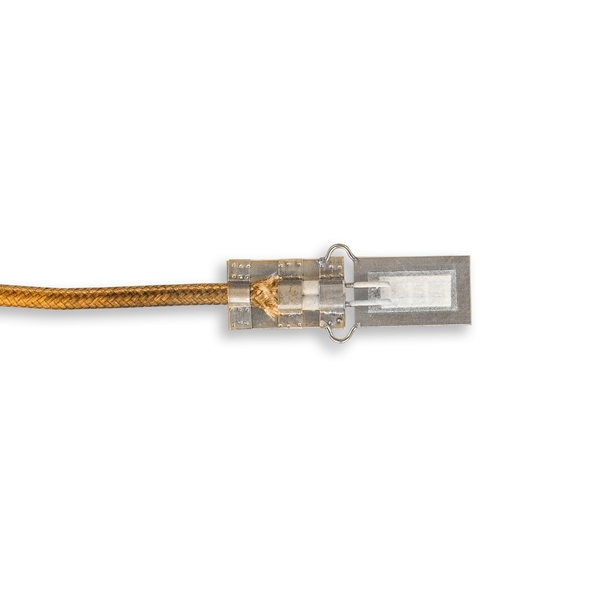

HBWANV

HBWANV Weldable Strain Gauge

Fatigue rated strain gauge 1/4, 1/2, full bridge or rosette

  • Rapid install, pre-wired
  • Max temperature 870ºC
  • Mineral insulated cable
  • Fibre glass cable

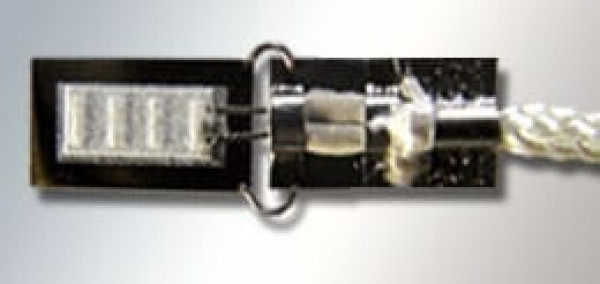

HBWAPT Weldable Strain Gauge

Dynamic high temperature strain gauge 1/4, 1/2, Rosette

  • Platinum tungsten gauge alloy
  • Max temperature 1038ºC
  • Excellent high temp oxidation resisitance
  • High fatigue life & gauge factor 4.0

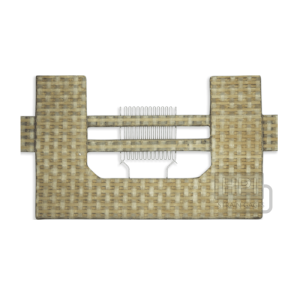

HFP Series

HFP Weldable or Bondable High Temperature Strain Gauge

High temperature dynamic strain gauge measurements

  • Platinum tungsten gauge alloy
  • Max temperature 1038ºC
  • Ceramic adhesive mounting or weld
  • High fatigue life & gauge factor 4.0

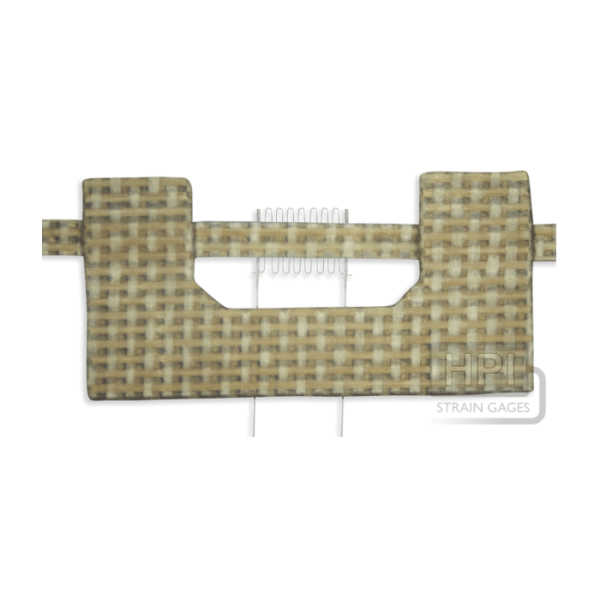

HFH Series

HFH Weldable or Bondable High Temperature Strain Gauge

High temperature static strain gauge measurements

  • Static strain to 700ºC
  • Max temperature 850ºC
  • Ceramic adhesive mounting or weld
  • Rokide flame-spray mounting

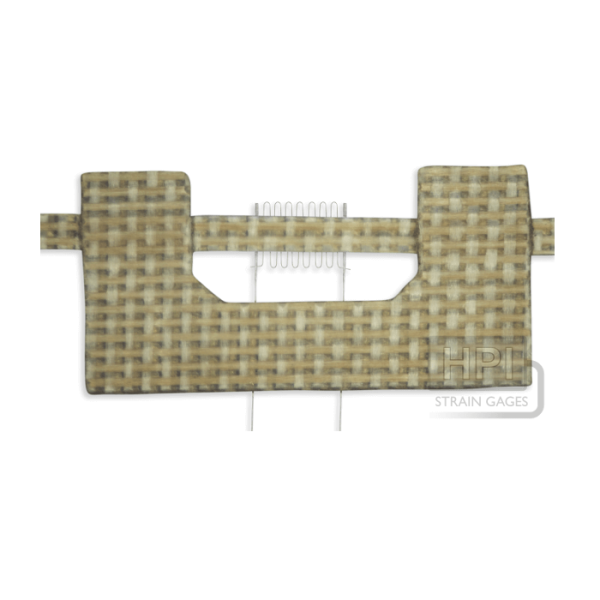

HFN Series

HFN Bondable High Temperature Strain Gauge

High Stability for static & dynamic strain gauge applications

  • Nichrome V alloy
  • Dynamic strain to 871°C
  • Ceramic adhesive mounting
  • Rokide flame spray mounting

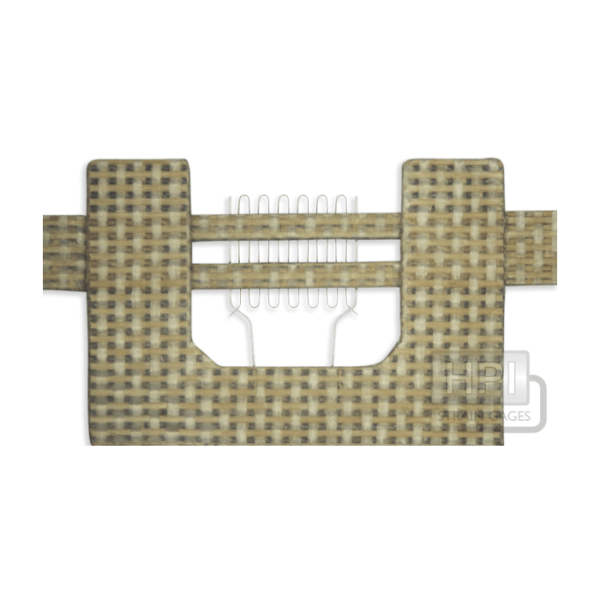

HFM Series

HFM Bondable High Temperature Strain Gauge

High temperature dynamic strain gauge measurements

  • Heat treated as standard
  • Max temperature 871ºC
  • Ceramic cement mounting
  • Rokide flame-spray mounting
Load More
