Weldable Strain Gauges

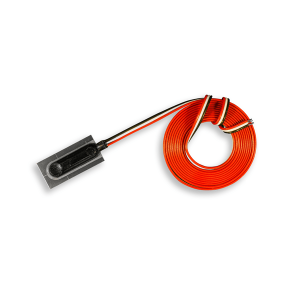

Waterproof weldable strain gauge 1/4, 1/2, full bridge

• Waterproof encapsulation
• Temperature range -45°C to +82°C
• Pre-curved shim options
• 120, 350 or 1000 Ohm

Waterproof weldable strain gauge 1/2, full bridge

• Poisson's ratio measurements
• Temperature range -45°C to +82°C
• Pre-curved shim options
• 120 or 350 ohm

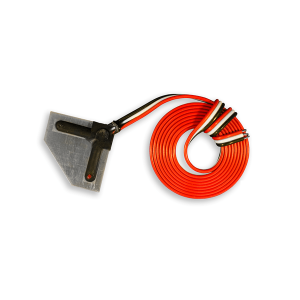

Waterproof weldable strain gauge full bridge

• Torque or twisting measurements
• Temperature range -45°C to +82°C
• Hoop or Axial pre-curved shim options
• 120 or 350 ohm

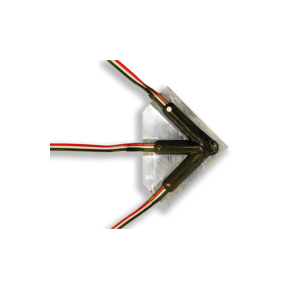

Waterproof weldable strain gauge 1/2, full bridge

• Plane strain measurements
• Temperature range -45°C to +82°C
• Three active elements at 45°
• 120 or 350 ohm

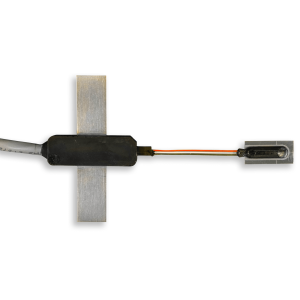

Static high temperature strain gauge 1/4, 1/2, Rosette

• Static strain to 700ºC
• Max temperature 850ºC
• Leadout attached
• Rapid mounting

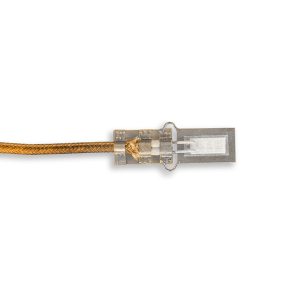

Fatigue rated strain gauge 1/4, 1/2, full bridge or rosette

• Rapid install, pre-wired
• Max temperature 870ºC
• Mineral insulated cable
• Fibre glass cable
