TRIONet3 DAQ Front End: Up To 16 High Speed Data Channels Or 4 Power Channels

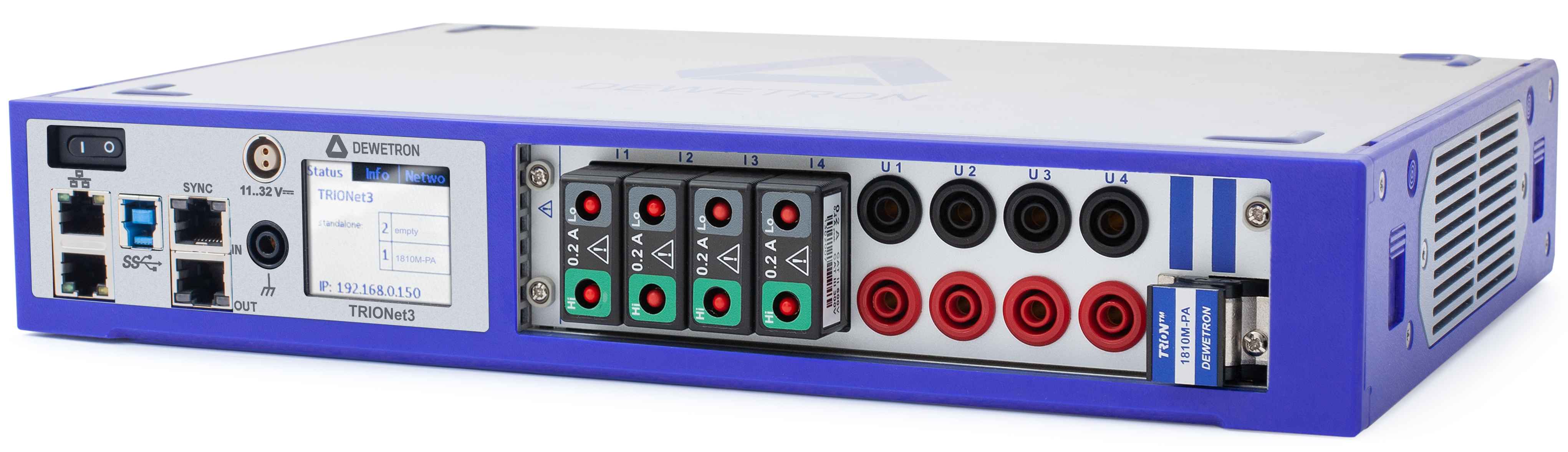

The new TRIONet3 is a powerful front-end DAQ system and the successor of the TRIONet. It is the ideal high speed measurement extension for your PC. Connected either via USB 3.0 or Gigabit-Ethernet, it can be distributed over long distances, up to 100 m apart from each other, and still work together synchronously.

Each TRIONet3 has two slots customisable with our exchangeable DAQ modules. Choose from our wide range of available modules, and transform your TRIONet3 into a full-fledged power analyser with up to 10 MS/s per channel sample rate, or enable GPS localisation. Our measurement software, Oxygen, ensures easy and quick setup of the TRIONet3. Just plug and play to start the gapless data recording.

See the TRIONet 3 here.

Oxygen Power: Real Time Inverter, Motor And Drivetrain Efficiency Maps

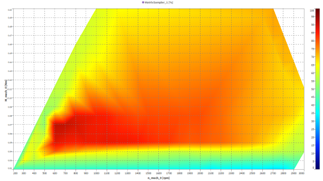

Oxygen’s advanced power option update combines AC power with DC power and mechanical power in a single group for enhanced synchronisation and accuracy. Up to 6 mechanical pairs are supported. 3 different efficiency maps can be created in real time (inverter, motor and complete drivetrain). Efficiency maps are created in real time during drivetrain sweeps. Each efficiency map can easily be exported as a PDF report or image file. Ideal applications include electric vehicle and electric aircraft powertrain development.

See Oxygen Power here.

Oxygen 7: New Modal Test Option For Mechanical Structures

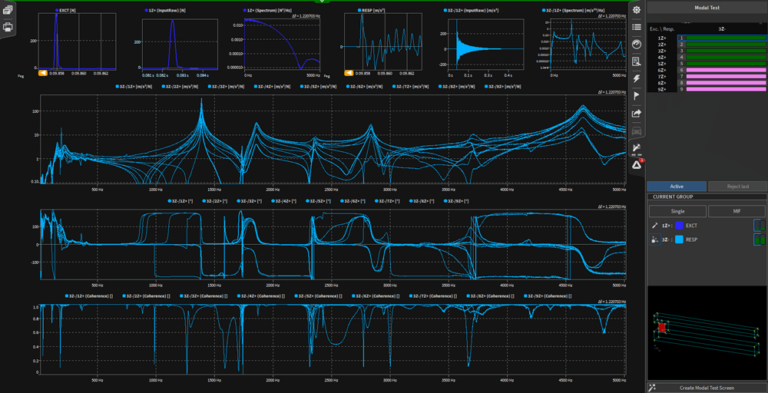

Oxygen 7’s new modal test option analyses the frequency characteristics of a mechanical structure to determine resonances, damping characteristics and more. Applications include Device Under Test (DUT) excitement via modal hammer, Single Input Single Output (SISO) & Single Input Multiple Output (SIMO) tests with moving hammer and moving sensor. Output data includes calculation of complex transfer function, coherence of several hits and mode indicator function. It has various interactive visualisation options and data export into *.uff and other formats for post processing.

See the Oxygen Modal Test option here.

DEWE3-M8s DAQ Chassis: Up to 64 High Speed Channels, Optimised for Automotive Test

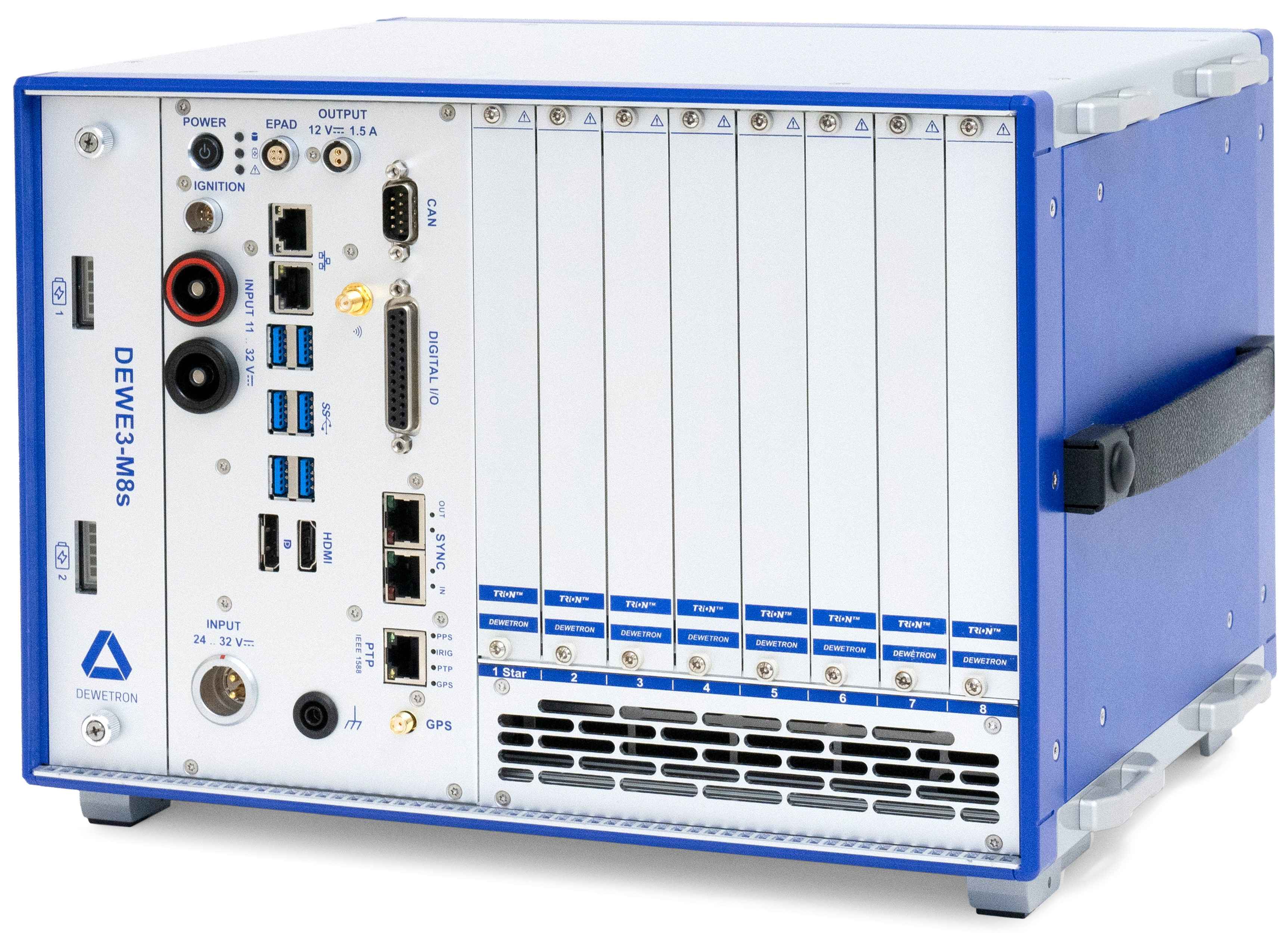

The new DEWE3-M8s DAQ chassis is DC powered and perfect for automotive applications including in-vehicle power and efficiency measurements, durability or vehicle dynamics tests and WLTP or e-charger measurements. The M8s has 8 TRION3 DAQ module slots to support up to 64 high speed analogue inputs OR 16 power channels with several powering options including 2 integrated battery bays. With CAN, GPS, PTP and video interface options, digital IO and removable data storage it provides maximum flexibility. Our OXYGEN measurement software is at the heart of every DEWE3-M8s.

Check out the DEWE3-M8s here.
