New Small Size String Potentiometer: CD30 and CD35

The CD30 and CD35 String Potentiometers are linear displacement sensors that use flexible stainless-steel draw-wire to measure distance. Both models convert the linear motion of the cable into an electrical signal with a potentiometric output, The draw wire cable is attached to a spring-loaded spool that rotates as the cable is pulled. This movement changes the position of a wiper on a rotary resistive element; the potentiometric output then varies proportionally to the input voltage signifying the length of draw wire pulled from the spool.

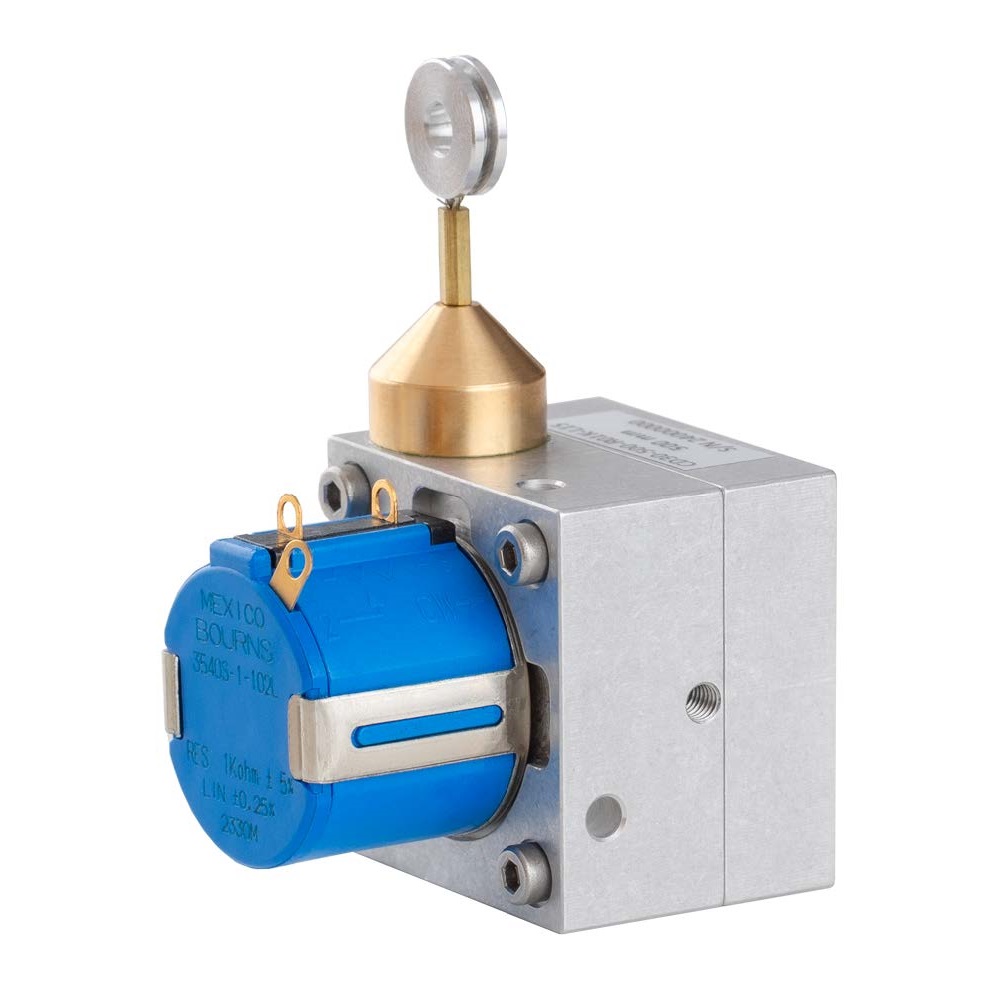

CD30 String Potentiometer

• Measurement Range: 0-150mm, 0-250mm, or 0-500mm
• Linearity Options: ±0.15% or ±0.25% of full scale
• Resistance Values: 1K ohms or 10K ohms
• Mounting Options: Screw-mounting, flange mounting, or mounting bracket with lug draw wire connection

CD35 String Potentiometer

• Measurement Range: 0-750mm
• Linearity Options: ±0.15% or ±0.25% of full scale
• Resistance Values: 1K ohms or 10K ohms
• Mounting Options: Screw-mounting, flange mounting, or mounting bracket with lug draw wire connection

Both the CD30 and CD35 String Potentiometers are suitable for a wide range of industrial applications, including robotics, automation, and structural monitoring, providing reliable and accurate linear displacement measurements.

Take a look at the full specification of the CD30 and CD35.

Enhanced HDA Digital Output Dynamic Triaxial Inclinometers Now Available

The HDA series of digital output dynamic triaxial inclinometers has been upgraded with higher range accelerometers and gyros, providing more robust and versatile options for a variety of applications. With a choice of filtering suited for in Vehicle (high speed) or Shipping (low speed) and the ability to output pitch angle, roll angle, Yaw angle, or the individual sensor values these sensors can be utilised in many applications.

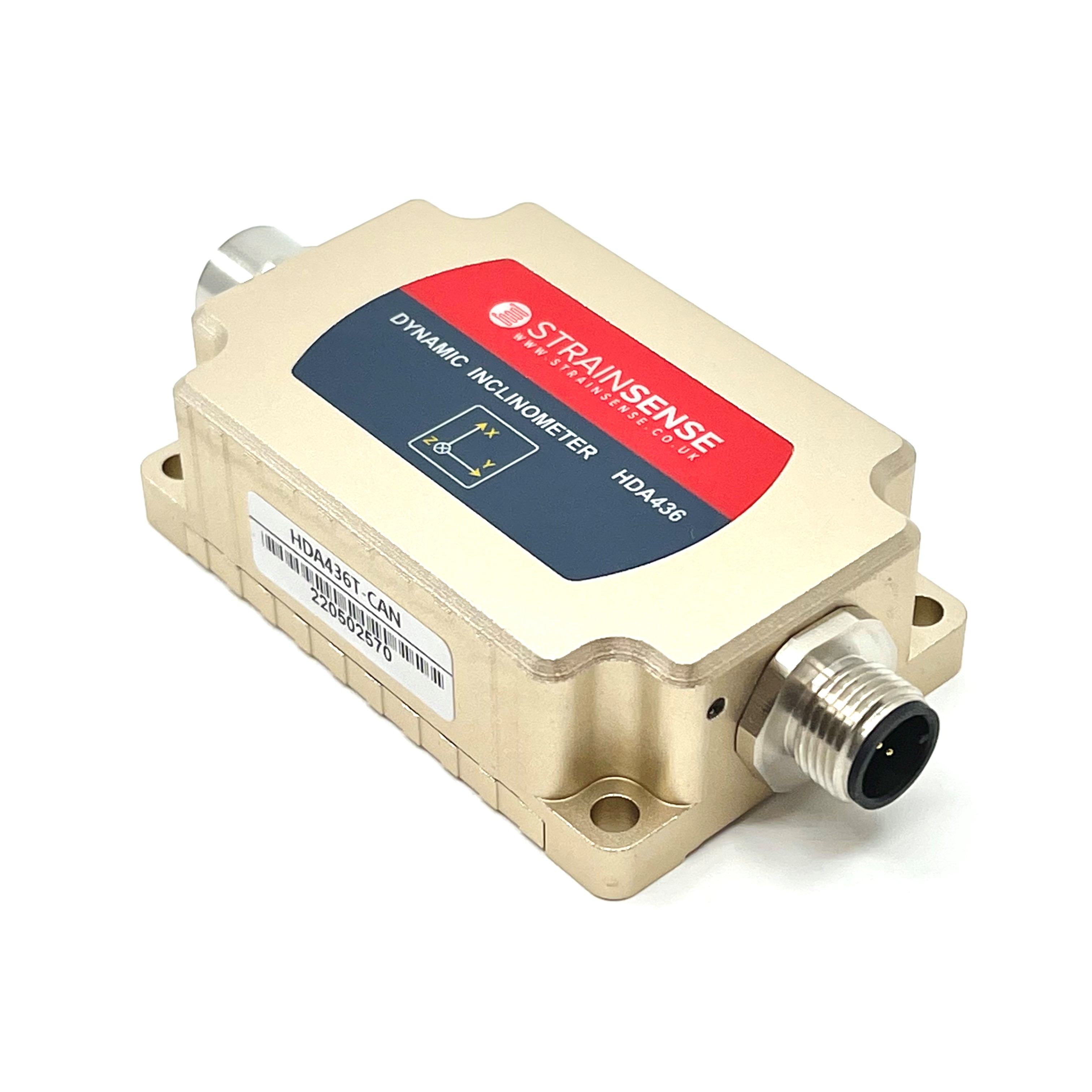

HDA436: Enhanced Precision and Performance

The HDA436 model is equipped with ±8g accelerometers and ±250°/s gyros, offering a balanced combination of sensitivity and range for dynamic inclination measurements. This model is perfect for applications that demand accurate data in moderate dynamic conditions.

HDA437: Expanded Range for Challenging Environments

For more demanding applications, the HDA437 features ±20g accelerometers and ±250°/s gyros. This expanded range makes it suitable for harsher environments where higher levels of acceleration are present, ensuring reliable performance and Improved Stability.

Upcoming HDA537: Maximum Range for Extreme Conditions

The forthcoming HDA537 model will push the boundaries further with 300°/s gyros and accelerometers capable of measuring up to ±40g. This model will be ideal for extreme conditions where the highest levels of dynamic range and precision are required.

Versatile Interface Options

To ensure compatibility with a wide range of systems, all HDA series inclinometers are available with RS232, RS485, or CAN interfaces. This flexibility allows for easy integration into existing setups, enhancing their applicability across various industries and applications.

Browse the HDA series here.

New Release: GA50 High Performance Accelerometer from Gladiator

Gladiator introduces the GA50 accelerometer, a high-performance open-loop SiMEMS analogue output device. Available in 5g, 40g, and 70g ranges, the GA50 offers low residual noise (<2 μg/√Hz VRW) and low short-term bias (<100 μg). It features a bulk micro-machined silicon MEMS device, an ASIC with an analog front end, and a temperature sensor in a compact, hermetically sealed LCC20 package.

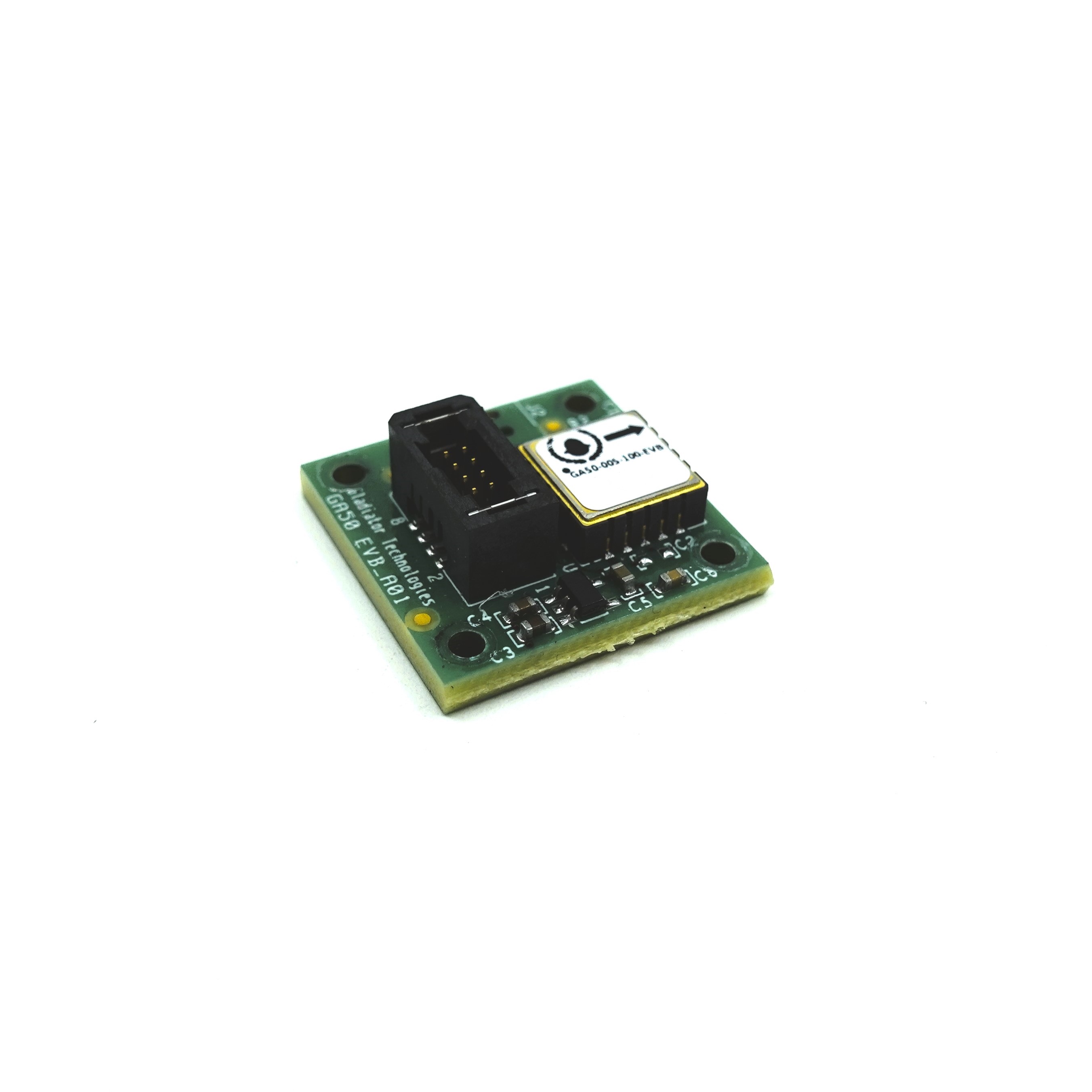

It is also available on an evaluation board for easy integration and testing. This accelerometer is ideal for high-performance applications requiring long-term repeatability and excellent short-term stability.

Take a look at the full specification of the GA50 here.

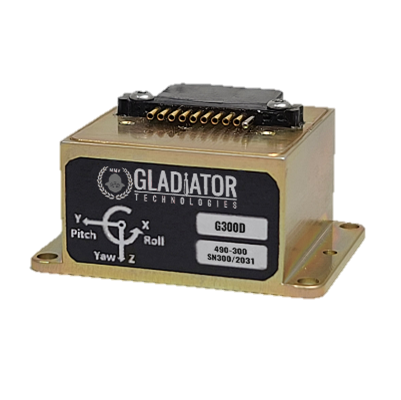

Introducing the G300D Triaxial Digital Output Gyroscope from Gladiator

Gladiator is excited to unveil the G300D, a low-noise triaxial digital output gyroscope designed for demanding applications such as guidance, navigation, Stability control, navigation, ROV movement monitoring. This advanced gyroscope is factory calibrated over temperature and built to perform consistently in extreme environments.

Key Features:

• Range: 490 degrees / second
• Output: RS-485 Digital
• ARW: 0.0017 deg/s/sqrtHz
• Scale Factor Linearity: 500 ppm
• Operating Temperature: -55 to 85°C

The G300D offers exceptional performance with low residual noise and high stability, making it ideal for applications requiring precise motion detection and reliable data.

Have a look at the GA300D here.
